wdCorp160x95_jpg    Choose the Best Door for your Commercial application





View Sectional Doors
View Rolling Doors



Whether your commercial door application calls for excellent thermal efficiency, has stringent wind load requirements, or requires a custom oversized door, Wayne Dalton has the door for you.  From our extremely efficient and durable Thermospan® line of doors to our economical steel sectional doors, every Wayne Dalton door is engineered and built to provide ultimate quality. With Wayne Dalton, you get more insulation choices, including the highest R-value rating available in a standard design. You’ll find the widest range of design and performance options offered in any commercial sectional door offering.

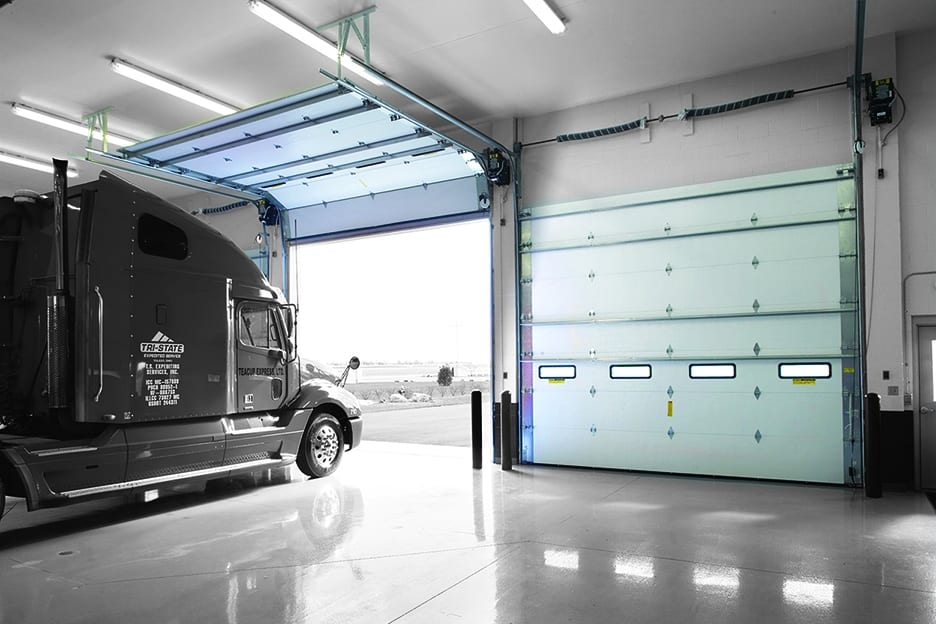

Guide to Sectional Doors

Choosing the right sectional door for your application can seem like a daunting task, but it doesn’t have to be. The following chart should help you narrow down your search to a few door models.

Insulated

Foamed-in-Place Polyurethane

Model Calculated
R-Value
Steel
Gauge
Section
Thickness
Integrated
Struts
Max Standard
Width
ThermoMark™ 530 R=26 27 3″ No 40’2″
Thermospan® 200-20 R=17.5 20 2″ Yes 24’2″
Thermospan® 200 R=17.5 27 2″ Yes 26’2″
ThermoMark™ 5200 R=16.22 27 1 7/8″ No 26’2″
ThermoMark™ 5255 R=16.22 27 1 7/8″ No 26’2″
Thermospan® 150 R=14.16 27 1 3/8″ Yes 26’2″
ThermoMark™ 5150 R=12.12 27 1 3/8″ No 26’2″
ThermoMark™ 5155 R=12.12 27 1 3/8″ No 26’2″
Thermospan® 125 R=10.79 27 7/8″ Yes 16’2″



Polystyrene (Option for non-insulated doors)

Model Calculated
R-Value
Steel
Gauge
Section
Thickness
Max Standard
Width
Joint Profile
Model C-24 R=7.6 24 2″ 30’2″ Tongue-and-groove
Model C-2400 R=7.6 Nominal 24 2″ 20’2″ Tongue-and-groove
Model 2411 R=7.6 Nominal 24 2″ 20’2″ Ship lap
Model 216 R=7.6 16 2″ 28’2″ Ship lap
Model C-20 R=7.6 20 2″ 28’2″ Tongue-and-groove
Model 220 R=7.6 20 2″ 30’2″ Ship lap
Model 2415 R=7.6 24 2″ 32’2″ Ship lap

Commercial Rolling Doors

 Click your door of choice

WD Service Doors small   WD Grilles small   WD Fire Doors



WD Counter Shutters   WD Roll Up Sheet Doors   WD Advanced Systems

Service Doors

Choosing the right rolling door for a specific application can seem like a challenge, but it doesn’t have to be. The following chart should help you narrow down your search to a few relevant door models.



Wayne Dalton Model Max Width Max Height Wind Load Construction
20′ 0″
(6096 mm)
20′ 0″
(6096 mm)
20 PSF (standard)
Up to 55 PSF
option
Steel, Aluminum,
Stainless Steel
20′ 0″
(6096 mm)
20′ 0″
(6096 mm)
20 PSF (standard)
Up to 55 PSF
option
Steel, Aluminum,
Stainless Steel
42′ 0″
(12802 mm)
30′ 0″
( 9144 mm)
20 PSF (standard)
Up to 55 PSF
option
Steel, Aluminum,
Stainless Steel
Model 800
(Optional Secur-Vent®
Ventilated Slats & Optional
Titan Oversize Doors)
40′ 0″
(12192 mm)
40′ 0″
(12192 mm)
20 PSF (standard)
Up to 55 PSF
option
Steel, Aluminum,
Stainless Steel
Model 900 14′ 0″
(4267 mm)
14′ 0″
(4267 mm)
20 PSF (standard)
Up to 31 PSF
option
Steel, Aluminum,
Stainless Steel
Model 926 12′ 0″
(3658 mm)
12′ 0″
(3658 mm)
Galvanized Steel


Top of the Page

Advanced Systems – 800 / 800c ADV

High Traffic Solution with Lasting Durability

Wayne Dalton 800 C Service DoorKey Product Features:

  • Max. Standard Width: 20′
  • Max. Standard Height: 20′
  • Control Panel: Electronic VFD* Controller
    with microprocessor
  • 800 Curtain: 3″ flat slats (#14 profile),hardened powder coat (gray, beige, white) 22 ga. steel with alternating endlocks.
  • 800C Curtain Pattern: 3″ insulated flat slats (#34 profile), hardened powder coat (gray, beige, white) 22 ga. steel front / 24 ga. steel backer with alternating endlocks. R-value of 7.7;
  • Sound Transmission Class rating of 22.

Options & Accessories

  • Flat insulated or non-insulated slat profile in a variety of gauges.
  • Vision/ventilation: 5″x3/4″ open fenestration; 5″x3/4″ acrylic vision lite.
  • Perimeter seals: surface guide weatherstrip, angled guide brush seal, exterior lintel weather seal, interior weather baffle, high usage guide weatherstrip (do not select if wind load is required).
  • Wind load: minimum of +/- 20 psf up to +/- 55 psf; options available to meet up to Dade County – Florida Building Commission High Velocity Hurricane Zone.
  • Custom color options.
  • Actuators: Loop detectors, radio control, push buttons, motion detectors and pull cords.

WD800-800C-ADV-Brochure

Top of the Page

Rolling Service Door Model 800C

Thermotite Insulated Rolling Doors Improve Thermal Efficiency

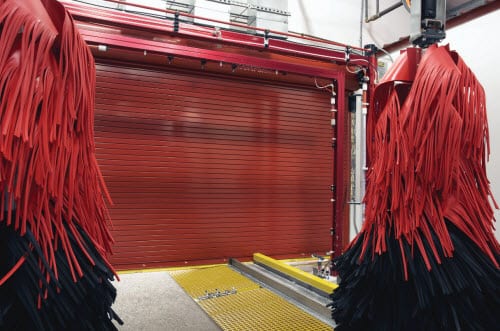

Wayne Dalton ThermoTite 800CKey Product Features:

  • Polyurethane insulation, R-Value = 7.7
  • Standard Max Width 42’*
  • Standard Max Height 30’
  • Max Steel Gauge = 18
  • Steel, aluminum or stainless steel construction
  • Wind load 20 PSF standard; options up to 55 PSF

*Larger sizes may be available.

Options & Accessories:

  • Vision Slat
  • Motor Operator
  • Cable Reels
  • Thru-Wall Operation
  • Bottom Bar Sensing Edges
  • Anti-Drop Devices (including Wayne Dalton’s Proprietary DSD – Drop Stop Device, and Brake Devices)
  • Exhaust Ports
  • Sloping Bottom Bars
  • Mullions
  • Optional powder coat finish
  • Pass Door

RollingService-Thermotite 800C-Brochure

Materials & Construction

Wayne Dalton’s Thermotite Model 800C insulated rolling service doors are composed of flat slats that provide a natural water-shed, helping to reduce corrosion. Polyurethane insulation with an R-value of 7.7 fill the slat to enhance a building’s thermal efficiency. The slats are designed with free-acting interlocking joints that permit easy articulation when the door coils.

The 800C Series features a strong double-angle bottom bar that reinforces the lower edge of the curtain against wind pressure and permits varied lock, astragal, and safety edge options. This bottom bar is designed for easy installation and does not require fasteners protruding into the guide openings, so the bottom bar does not interfere with door operation.

Counterbalance assembly consists of a spring barrel which serves as load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils. (Deflection is limited to 0.033″ per lineal foot of span.) If required, barrel rings of malleable iron or stamped steel may be provided to assure proper counterbalance. Oil-tempered, torsion-type counterbalance springs are wound from heat-treated steel, providing accuracy in balancing the door. Barrel plugs connect ends of springs to barrel and tension rod. Tension rod of steel shafting holds fixed ends of springs and carries torsion load of spring counterbalance.

Spring tension adjusting wheel is normally mounted outside the bracket on end of tension rod. Inside adjusting wheel for tight side-room applications is available in limited sizes.

The hood cover encloses the curtain coil and counterbalance mechanism. Slat hoods are available on gray, brown, beige, and white doors.


Top of the Page

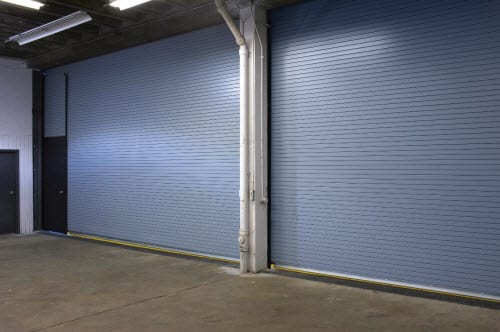

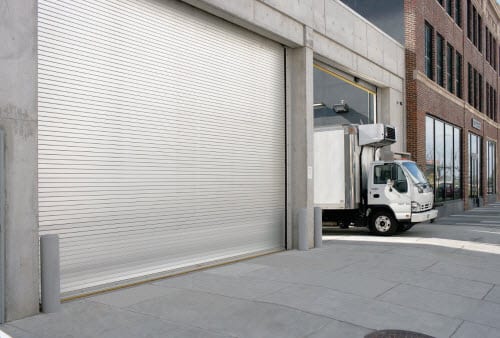

Rolling Service Door Model 800

Rolling Doors To Meet Your Most Demanding And Rigorous Applications

Wayne Dalton Rolling Service Door 800Key Product Features:

  • Standard Max Width 40’
  • Standard Max Height 40’*
  • Steel, aluminum or stainless steel construction
  • Heavy-Duty 3” flat or curved slats
  • Wind load 20 PSF standard; options up to 55 PSF

*Larger sizes may be available.

Options & Accessories:

  • Secur-Vent® perforated slats
  • Vision slat
  • Open fenestration slat
  • Over-sized Titan™ for large door application such as hangar door (up to 70’ wide)
  • High Wind load
  • Articulating Windlocks for Operational Windload
  • Brush Seal for Curtain, Lintel Brush, and Hood Baffle
  • Manual Chain Hoist
  • Motor Operator
  • Bottom Bar Sensing Edges
  • Anti-Drop Devices (including Wayne Dalton’s Proprietary DSD – Drop Stop Device, and Brake Devices)
  • Exhaust Ports
  • Sloping Bottom Bars
  • Mullions
  • Optional powder coat finish
  • Pass Door

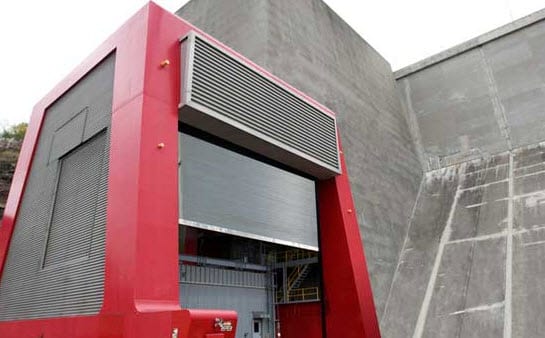

Rolling Doors To Handle Your Biggest Jobs – Oversized Titan Slats

Titan-rolling-service-door

The Titan Rolling Steel Service Door is simply the largest, strongest, most rugged rolling steel service door in the industry and perfect for the largest of openings. Constructed from 6” tall curved slats which are formed from 18- gauge or 14- gauge commercial quality steel, it can stand up to severe abuse and provide the highest degree of security for critical requirements. It provides the most windload resistance for any specification, and is available with heavy duty articulating windlocks to permit door operation during high wind speed events.

Materials & Construction

Wayne Dalton’s Model 800 rolling service doors are composed of curved or flat-faced slats that provide a natural water-shed, helping to reduce corrosion. The slats are designed with free-acting interlocking joints that permit easy articulation when the door coils.

The Model 800 features a strong double-angle bottom bar that reinforces the lower edge of the curtain against wind pressure and permits varied lock, astragal, and safety edge options. This bottom bar is designed for easy installation and does not require fasteners protruding into the guide openings, so the bottom bar does not interfere with door operation.

Counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils. (Deflection is limited to 0.033″ per lineal foot of span.) If required, barrel rings of malleable iron or stamped steel may be provided to assure proper counterbalance. Oil-tempered, torsion-type counterbalance springs are wound from heat-treated steel, providing accuracy in balancing the door. Barrel plugs connect ends of springs to barrel and tension rod. Tension rod of steel shafting holds fixed ends of springs and carries torsion load of spring counterbalance.

Spring tension adjusting wheel is normally mounted outside the bracket on end of tension rod. Inside adjusting wheel for tight side-room applications is available in limited sizes.

The hood covers the curtain coil and counterbalance mechanism. Slat hoods are available on gray, brown, beige, and white doors.


Top of the Page

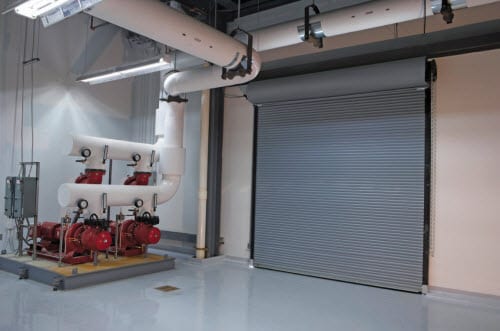

Rolling Service Door Model 900

Reliable and Durable Rolling Service Doors For Moderate Use

Wayne Dalton Rolling Door 900Key Product Features:

  • Standard Max Width 14’*
  • Standard Max Height 14’*
  • Steel, aluminum or stainless steel construction
  • Flat or curved slats available
  • Wind load 20 PSF standard; options up to 31 PSF

*Larger sizes may be available.

Options & Accessories:

  • Secur-Vent® perforated slats (Flat slat only)
  • Motor Operator
  • Cable Reels
  • Thru-Wall Operation
  • Bottom Bar Sensing Edges
  • Anti-Drop Devices (including Wayne Dalton’s Proprietary DSD – Drop Stop Device, and Brake Devices)
  • Exhaust Ports
  • Sloping Bottom Bars
  • Mullions
  • Optional powder coat finish

Materials & Construction

Wayne Dalton’s Model 900 rolling service doors are composed of curved or flat-faced slats that provide a natural water-shed, helping to reduce corrosion. The slats are designed with free-acting interlocking joints that permit easy articulation when the door coils.

The Model 900 features a strong double-angle bottom bar that reinforces the lower edge of the curtain against wind pressure and permits varied lock, astragal and safety edge options. This bottom bar is designed for easy installation and does not require fasteners protruding into the guide openings, so the bottom bar does not interfere with door operation.

The counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils. (Deflection is limited to 0.033″ per lineal foot of span.) If required, barrel rings of malleable iron or stamped steel may be provided to assure proper counterbalance. Oil-tempered, torsion-type counterbalance springs are wound from heat-treated steel, providing accuracy in balancing the door. Barrel plugs connect ends of springs to barrel and tension rod. Tension rod of steel shafting holds fixed ends of springs and carries torsional load of spring counterbalance.

Spring tension adjusting wheel is normally mounted outside the bracket on end of tension rod. Inside adjusting wheel for tight side-room applications is available in limited sizes.

The hood cover encloses the curtain coil and counter balance mechanism. Slat hoods are available in gray, brown, beige, and white doors.


Top of the Page

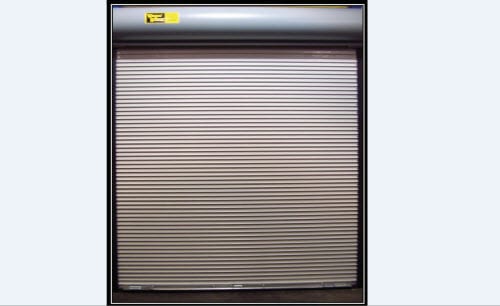

Rolling Service Door Model 926

Wayne Dalton Rolling Door 926Key Product Features:

  • Standard Max Width 12’
  • Standard Max Height 12’
  • Galvanized steel construction
  • 26-gauge flat slats

Options & Accessories:

  • Slide Bolt Locks
  • Hood
  • Vinyl Weatherseal for Curtain, Lintel Brush and Rubber Hood Baffle
  • Motor Operator
  • Bottom Bar Sensing Edges
  • Optional powder coat finish

Materials & Construction

Wayne Dalton’s Model 926 rolling service doors are composed of flat-faced slats that provide a natural water-shed, helping to reduce corrosion. The slats are designed with free-acting interlocking joints that permit easy articulation when the door coils. The Model 926 features a strong double-angle bottom bar that reinforces the lower edge of the curtain against wind pressure and permits varied lock, astragal and safety edge options. This bottom bar is designed for easy installation and does not require fasteners protruding into the guide openings, so the bottom bar does not interfere with door operation. Zinc plated, cast iron windlocks add strength and prevent lateral slat movement.

The counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils. (Deflection is limited to 0.033″ per lineal foot of span.) If required, barrel rings of malleable iron or stamped steel may be provided to assure proper countebalance. Oil-tempered, torsion-type counterbalance springs are wound from ASTM A229 steel, providing accuracy in balancing the door. Barrel plugs connect ends of springs to barrel and tension rod. Tension rod of steel shafting holds fixed ends of springs and carries torsional load of spring counterbalance.

Spring tension adjusting wheel is normally mounted outside the bracket on end of tension rod. Inside adjusting wheel for tight side-room applications is available in limited sizes.

The hood cover encloses the curtain coil and counterbalance mechanism. Slat hoods are available.


Top of the Page

Security Grilles for Commercial

Choosing the right security grille for a specific application can seem like a challenge, but it doesn’t have to be. The following chart should help you narrow down your search to a few relevant door models.

Wayne Dalton Model Max Width Max Height Wind Load Construction
30’4″ 14’4″ Steel, Aluminum,
Stainless Steel
Model 600
Rolling Grille
(Optional EES Emergency Egress)
42′
(12802 mm)
20′
(6096 mm)
Steel, Aluminum,
Stainless Steel
Accordion Folding Grille No Limit 14′
(4267 mm)
Aluminum


Top of the Page

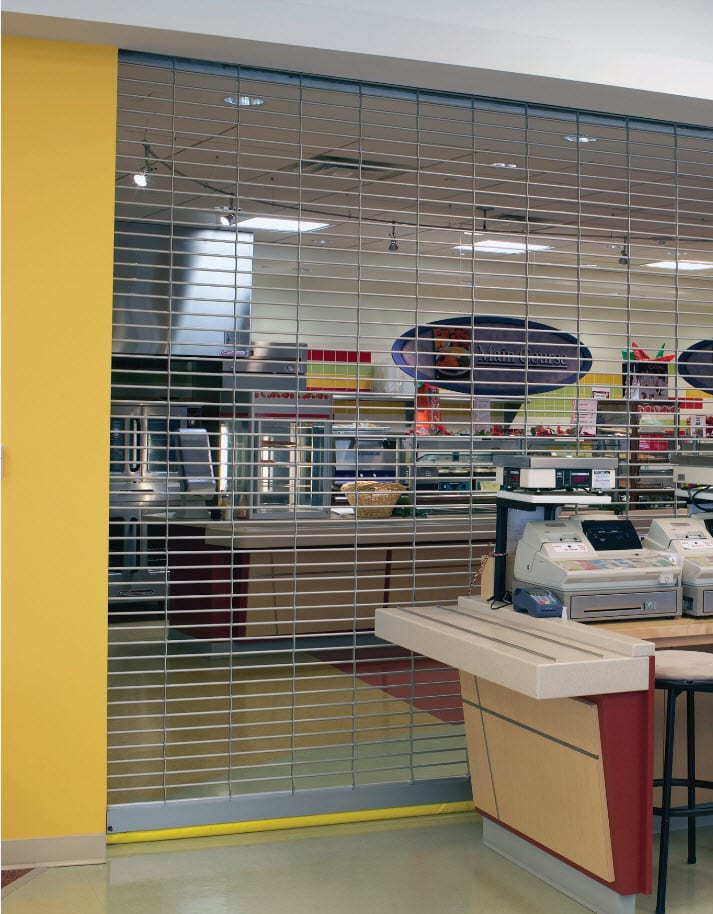

Advanced Systems  – 600 ADV Grille

High Traffic Solution with Lasting Durability

Wayne Dalton Grille 600Key Product Features:

  • Max. Standard Width: 30’4″ (9,246 mm)
  • Max. Standard Height: 14′ 4″ (4,369 mm)
  • Max. Total Area: 240 ft²*
  • Control Panel: Electronic VFD* Controller
    with microprocessor
  • Curtain: Heavy duty galvanized steel links
    and rods with mill aluminum spacer tube
  • Curtain Pattern: Straight lattice

Options & Accessories

  • Curtain pattern: Brick 4.5″ on center vertical links with 2″ on center rods spacing.
  • Curtain material: Mill aluminum link, galvanized steel rod, with mill aluminum spacer tube.
  • Clear anodized aluminum link, galvanized steel rod, and clear anodized aluminum spacer tube #4 or #2B stainless steel link, galvanized steel rod, and stainless steel spacer tube.
  • Guides: Premium powder coat finish, zinc enriched powder coat finish, stainless steel.
  • Hood: 24 gauge powder coated steel, stainless steel with brush finish, powder coated aluminum.
  • Actuators: Loop detectors, radio control, push buttons, motion detectors and pull cords.

Top of the Page



Rolling Grille Model 600

Designed to Maximize Security, Visibility, and Ventilation

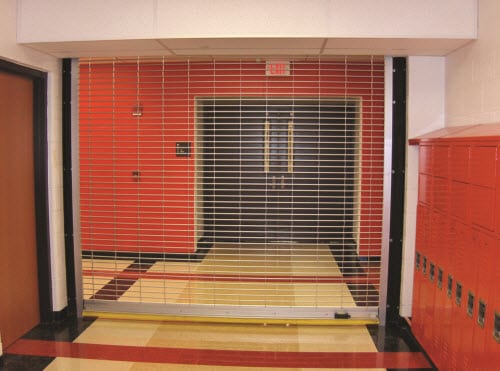

Wayne Dalton Grille 600 EESKey Product Features:

  • Standard Max Width 42′
  • Standard Max Height 20’
  • Steel, Aluminum, Stainless Steel construction
  • Variety of grille patterns and finishes
  • EES Emergency Egress option

Model 600EES Emergency Egress Option:

Access-Controlled Egress Security with Fail-Safe Automatic Opening
The Wayne Dalton emergency egress grille provides secure access to public areas, yet will automatically open fully upon detection of an alarm or power failure. This prevents entrapment in the event of an emergency and allows immediate access to emergency personnel. The emergency egress grille is ideal for schools, hospitals, and office buildings, or other applications that require different levels of access at various times.

Materials & Construction

Standard features include 5/16” galvanized steel horizontal rods, continuous from jamb to jamb, and covered with aluminum tubes. Vertical links are aluminum. End links ensure that the grille cannot be pulled from guides.

The bottom bar is a tubular aluminum extrusion, fitted with nylon end caps which act as bearing surfaces.

Optional cylinder lock assembly in bottom bar activates concealed 3/8” steel tamperproof lock rods. Lock uses standard mortise cylinder, and is also available with an optional removable core. Center locks available up to 25′ wide.

Aluminum grille patterns are available in clear, mill, or bronze anodized finishes. Optional materials are #304 finished stainless steel and galvanized steel.

Powder coating is available in over 180 colors. Powder coating is a dry finishing process in which finely ground particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded parts of rolling doors. These charged particles adhere to the rolling door parts until they melt and fuse into a solid coating in a curing oven. The result is a finish that radiates beauty and smoothness for an aesthetically pleasing grille.

Operation can be manual push-up, chain, crank, or motor-operated. Door mounting can be self-supporting, using structural tubes, or directly to the building structure.

Counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils. (Deflection is limited to 0.033″ per lineal foot of span.) If required, barrel rings of malleable iron or stamped steel may be provided to assure proper counterbalance. Oil-tempered, torsion-type counterbalance springs are wound from heat-treated steel, providing accuracy in balancing the door. Barrel plugs connect ends of springs to barrel and tension rod. Tension rod of steel shafting holds fixed ends of springs and carries torsional load of spring counterbalance.

Spring tension adjusting wheel is normally mounted outside the bracket on end of tension rod. Inside adjusting wheel for tight side-room applications is available in limited sizes.

Optional hood cover encloses curtain coil and counterbalance mechanism and is made to match the grille finish.


Top of the Page

Accordion Folding Grille

Secure Full Closure Designs

according-folding-grille-doorKey Product Features:

  • Standard Max Width No Limit
  • Standard Max Height 14’
  • Aluminum construction
  • Wide variety of patterns

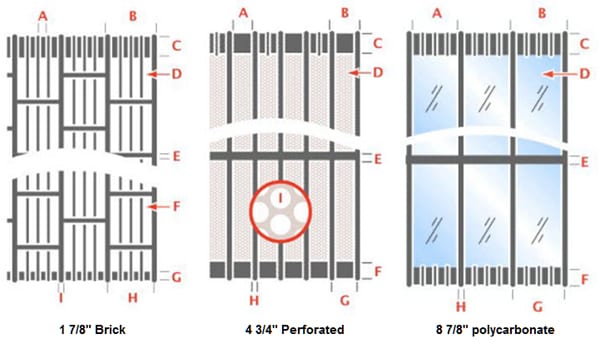

Grille Styles

Accordion-Folding-Grille-Wayne-Dalton

 Product Information

  • Pocket – Includes the storage pocket complete with an aluminum pocket door and adjustable height, installation is a breeze. Available in a wide variety of sizes.
  • Finish – Durable clear anodized finish on exposed aluminum surfaces. Optional colors available
  • Posts – Many ways to secure the curtain with a wide variety of locking posts.
  • Track – The durable hardened track allows for smooth operation. Optional curves and custom curves available.
  • Egress – Emergency egress fire exit is available to meet fire code regulations.
  • Cylinders – Locking posts supplied with 1″ mortise cylinder can be easily changed onsite. Optional SFIC housing and cores available.

Top of the Page



Fire Doors for Commercial

Choosing the right rolling fire door for a specific application can seem like a challenge, but it doesn’t have to be. The following chart should help you narrow down your search to a few relevant door models.

Wayne Dalton Model Max Width Max Height Fire Labeled Wind Load Construction
24′ 0″
(7315 mm)
24′ 0″
(7315 mm)
Yes Optional Steel, Stainless Steel
FireStar® Model 700
Fire Door
36′ 0″
(10973 mm)
28′ 0″
(8534 mm)
Yes Optional Steel, Stainless Steel
FireStar® Model 540/550
Counter Shutter
16′ 0″
(4876 mm)
9′ 0″
(2743 mm)
Yes Galvanized Steel (540),
Stainless Steel (550)
Integral Frame Fire
Counter Shutter
9′ 0″
(2743 mm)
4′ 0″
(1219 mm)
Yes Galvanized Steel,
Stainless Steel


FireStar® Rolling Fire Door Model 700C

Insulated Fire Doors Provide Protection and Thermal Efficiency

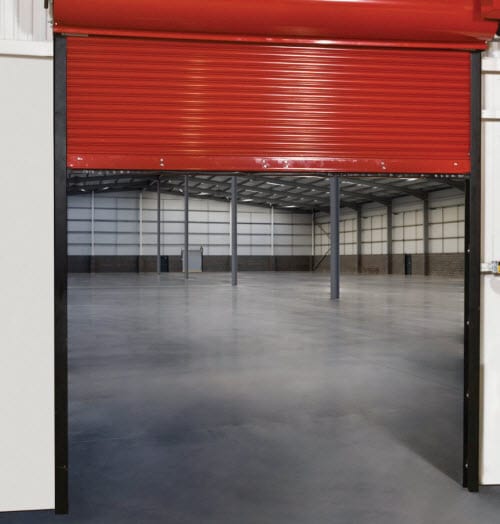

Wayne Dalton Fire Door 700 700cKey Product Features:

  • Insulated Steel, R-Value = 5.0
  • Standard Max Width 24’
  • Standard Max Height 24’
  • UL or FM Rated
  • Patented planetary gear design
  • Conforms to NFPA Standard 80
  • Easy drop-test and floor resettable

Options & Accessories:

  • Fire Door Release System
  • Horns and Strobes
  • Smoke Detectors
  • Vision FireLites
  • Chain Hoist, Crank or Motor Operation
  • Thru-Wall Operation
  • Bottom Bar Sensing Edges
  • Optional Powder Coat finish

Wayne Dalton FireStar® Rolling Steel Fire Doors provide a practical and innovative solution to safety and fire protection. FireStar® doors can be drop-tested and reset at any time by anyone, such as a facility manager or maintenance supervisor, thanks to a standard auto-reset feature.

The FireStar® door features a forward-thinking design that outperforms industry standard fire doors in all areas, including auto-reset testing capability; smooth, quiet operation; and reliable, long-lasting performance.

Safety

The FireStar® door can be drop tested easily and reset in seconds; no tools or service technicians required. These tests can be done in addition to the required annual inspection by a trained technician. By self-testing throughout the year, you can be even more confident that the door will function safely in the event of fire.

The drop-out mechanism is designed to eliminate down time during drop testing while the viscous governor technology results in smoother, quieter door operation.

Reliability

The revolutionary FireStar® design uses a patent-pending planetary gear on the drop-out mechanism ensuring years of reliable service and drop-out performance. Factory tested and approved for a minimum of 20,000 cycles, the FireStar® door can be used and/or tested on a regular basis.

FireStar® fire doors have been tested and approved to meet the requirements of well-known agencies, such as Underwriters Laboratories and Factory Mutual, and conform to NFPA Standard 80.

Simplicity

Wayne Dalton incorporates one standardized component design for all FireStar® doors regardless of size, and utilizes fewer parts than other models. This helps to ensure more accurate installations and reduces the possibility of potential service calls in the future.

As an added benefit, eliminating one of the fusible link cables helps the door and surrounding area look cleaner and less cluttered. It also reduces the risk of cable interference with other nearby fixtures.

FireStar® Rolling Fire Door Model 700

The Industry’s Most Innovative Fire Door

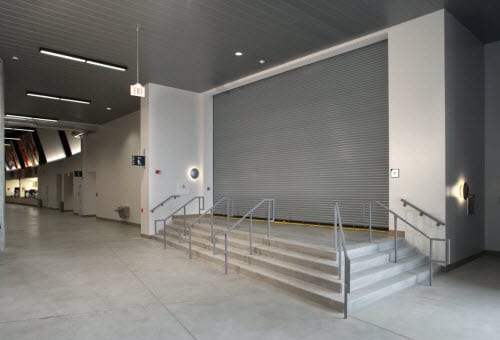

Wayne Dalton rolling Fire door 700Key Product Features:

  • Standard Max Width 36’
  • Standard Max Height 28’
  • UL or FM Rated
  • Patented planetary gear design
  • Conforms to NFPA Standard 80
  • Easy drop-test and floor resettable
  • Non-tension release

Options & Accessories:

  • Fire Door Release System
  • Horns and Strobes
  • Smoke Detectors
  • Vision FireLites
  • Lift Up, Chain Hoist, Crank or Motor Operation
  • Bottom Bar Sensing Edges
  • Optional Powder Coat Finish

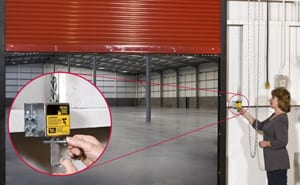

Model 700 fire door auto reset feature

Wayne Dalton FireStar® Rolling Steel Fire Doors provide a practical and innovative solution to safety and fire protection. FireStar® doors can be drop-tested and reset at any time by anyone, such as a facility manager or maintenance supervisor, thanks to a standard auto-reset feature.

The FireStar® door features a forward-thinking design that outperforms industry standard fire doors in all areas, including auto-reset testing capability; smooth, quiet operation; and reliable, long-lasting performance.

Safety

The FireStar® door can be drop tested easily and reset in a matter of seconds at any time; no tools or service technicians are required. Please note that this can be done in addition to the door’s required annual inspection by a trained door systems technician. By self-testing throughout the year, facility personnel can be even more confident that their door will function safely in the event of fire.

The drop-out mechanism is designed to eliminate down time during drop testing while the viscous governor technology results in smoother, quieter door operation.

Reliability

The revolutionary FireStar® design uses a patent-pending planetary gear on the drop-out mechanism ensuring years of reliable service and drop-out performance.

Factory tested and approved for a minimum of 20,000 cycles, the FireStar® door can be used and tested on a regular basis without concerns of premature failure.

FireStar® fire doors have been tested and approved to meet the requirements of well-known agencies, such as Underwriters Laboratories and Factory Mutual, and conform to NFPA Standard 80.

Simplicity

Wayne Dalton incorporates one standardized component design for all FireStar® doors regardless of size, and utilizes fewer parts than other models. This helps to ensure more accurate installations and reduces the possibility of potential service calls in the future. And as an added benefit, eliminating one of the fusible link cables helps the door and surrounding area look cleaner and less cluttered. It also reduces the risk of cable interference with other nearby fixtures.

FireStar® Fire Counter Shutter Models 540-550

A Revolutionary Counter Shutter that Provides Fire Protection

Wayne Dalton fire-door-model-540Key Product Features:

  • Standard Max Width 16’
  • Standard Max Height 9’
  • Max Steel Gauge = 20
  • UL or FM Rated; Conforms to NFPA Standard 80
  • Easily tested and reset
  • Non-tension release

Options & Accessories:

  • Available in Steel (Model 540) or stainless steel (Model 550)
  • SmokeTite UL-Labeled smoke and draft control package.
  • Mounted against face-of-wall or between-jambs for all operation types.
  • Single fusible link cable routing. Available with left-hand or right-hand operation.
  • Fire Door Release System
  • Horns and Strobes
  • Smoke Detectors
  • Vision FireLites
  • Lift Up, Crank or Motor Operation
  • Bottom Bar Sensing Edges
  • Optional Powder Coat Finish

Available:
22-gauge steel
22-gauge stainless steel

The FireStar® fire-rated counter shutters meet the demands of applications that require a pleasing appearance combined with certified and labeled fire protection for your property. Our innovative and exclusive design provides lift-up operation that is extremely easy to test and does not require tools to reset the mechanism. As an added bonus, the design offers very quiet and smooth functionality.

FireStar® fire-rated counter shutters are a simple and innovative solution for your safety and fire protection needs. Critical elements necessary in the reliable function of fire doors are incorporated as standard features with FireStars revolutionary design.

These shutters, which are for openings up to 112 square feet, are compact and pleasing in appearance while permitting frequent opening and closing with optimal fire protection.

FireStar® counter shutters have a 3/4, 1 1/2, or 3-hour label rating for masonry or steel jambs (minimum 3/16). Also available in 1 1/2 hour rating for non-masonry walls with 16-gauge steel or wood studs.

Safety

The FireStar® counter shutter can be drop tested easily and reset in a matter of seconds at any time; no tools or service technicians are required. This can be done in addition to the doors required annual inspection by a trained door systems technician. By self-testing throughout the year, facility personnel can be even more confident that their door will function safely in the event of fire.

Reliability

FireStar® counter shutters have been tested and approved to meet the requirements of well known agencies, such as Underwriters Laboratories and Factory Mutual, and conform to NFPA Standard 80.

Approval/Standard Compliances include:

  • Underwriters Laboratories (UL) 10(b) Approval
  • Factory Mutual (FM) Approved Standard 4100 (1990)
  • Designed to comply with governing standard for installation defined in NFPA 80 (2010)

Simplicity

By eliminating one of the fusible link cables, the door and surrounding area look cleaner and less cluttered. It also reduces the risk of cable interference with other nearby fixtures while making installation and drop testing easier.

Integral Frame Fire Counter Shutter

Protection, Quality, and Convenience

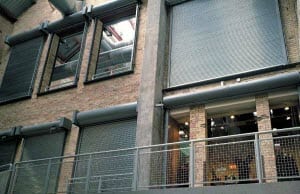

Wayne Dalton Integral Frame Fire Counter ShutterKey Product Features:

  • Openings up to 9’x 4’
  • Warnock-Hersey up to 3-hour rating
  • UL 1 ½ hour Class B label
  • Primed steel or stainless steel
  • Easy installation

Options & Accessories:

  • UL Listed brush-type smoke seal
  • Photoelectric or ionization-type smoke detectors
  • Locking mechanisms: Cylinder locking bottom bar with mortise cylinders

Materials & Construction

The Integral Frame Fire Counter Shutters provide an attractive appearance for a variety of applications, including food service counters. Available for opening sizes up to 9’ x 4’ (2743 mm x 1219 mm), these doors carry a UL 11?2-hour Class B label and are factory assembled as a complete unit with fully welded frames. The frame comprises 16-gauge jambs and header, and is complemented by a 14-gauge sill, plus hood and fascia. The curtain is made of interlocking 22-gauge stainless steel or 22-gauge galvanized steel slats with endlocks.

Easy Installation

Our Integral Frame Rolling Counter Shutters arrive on the job site ready to install. These doors offer the precision assembly of a factory-welded unit, providing the utmost in convenience and quality in a complete line of rolling counter doors. These shutters are mounted in between the jambs, and are installed as the wall is built. As an option, the shutter is available as a built-in unit for an existing opening. Standard operation is manual push-up and crank operation is available as an option.

Top of the Page

Counter Shutters for Commercial

Designed for interior or exterior use, Wayne Dalton’s counter shutters feature rugged construction that provides maximum security. Our shutters are offered in steel, aluminum, stainless steel as well as a variety of wood species. Our integral frame shutters are complete with frame and sill and can be UL fire labeled where necessary.

Wayne Dalton Model Max Width Max Height Wind Load Construction
15′ 0″
(4572 mm)
7′ 0″
(2134 mm)
Steel, Aluminum,
Stainless Steel
12′ 0″
(3657 mm)
8′ 0″
(2438 mm)
Various Woods
12′ 0″
(3657 mm)
6′ 0″
(1828 mm)
Steel, Aluminum,
Stainless Steel

Integral Frame has an option to be Fire Labeled.

Rolling Counter Shutter Door Model 500

Exceptional Security and Aesthetics

W-CD-500-concession-right

Key Product Features:

  • Aluminum, Galvanized Steel, or Stainless Steel
  • Standard Max Width 15’
  • Standard Max Height 7’*
    * for larger openings, please consult the factory.
  • 2” Flat slats
  • Lift Up, Crank or Motor Operation

Options & Accessories:

  • Powder Coat Finish
  • Slide Locks
  • Cylinder Locks
  • Center Locking
  • Counter Cutouts
  • Mullion Systems
  • Sensing Edges
  • Secur-Vent® Perforated Slats
  • Fascias
  • Integral Frame Units
  • Brochure

Exceptional Security and Aesthetics

Wayne Dalton’s Rolling Counter Shutter provides the perfect solution for smaller openings that require visually appealing access control. Our Model 500 shutter is designed to be utilized in those applications that incorporate counter tops or openings that require the shutter to rest on a sill. With several different modes of operation including lift-up, crank and motor, our counter shutter is the preferred solution for your application. Whether it’s a concession stand, accounts payable window, sports arena or school food service, the Model 500 is the counter shutter of choice.

The Wayne Dalton Model 500 Rolling Counter Shutter combines aesthetics and security in a compact unit ideal for smaller openings or restricted space applications. Designed to fit openings up to 15′ wide and 7′ high, these reliable doors are an ideal choice for commercial, retail, corporate and professional applications.

Durable Materials with Stylish Features

The high quality, interlocking slats on the rolling counter shutter are available in galvanized steel, stainless steel or aluminum for long-lasting durability. The “box” type guides are designed to reduce operational noise as well as to conceal the fasteners used to attach the shutter to the jamb resulting in quieter operation and greater visual appeal. A square hood cover encloses the curtain coil and counterbalance mechanism giving a clean, professional appearance.

Performance

The counterbalance assembly utilizes a spring barrel design which encases the mechanism while providing an axis around which the curtain coils. Oil-tempered, torsion-type counterbalance springs are wound from steel, providing accuracy in balancing the door. A spring tension adjusting wheel is normally mounted outside the bracket on the end of the tension rod. An inside adjusting wheel for tight side-room applications is available in limited sizes. Based on the needs of the application, there are a variety of operational choices. Counter shutter operation can be manual push-up, chain, crank, or motor-operated. Door mounting can be self-supporting (using structural tubes) or directly on to the building structure.

Attractive Options

For the ultimate in custom appearance, powder coating is available in over 180 colors. The flexibility in color choice results in a finish that radiates beauty and smoothness to produce an aesthetically pleasing curtain to suit any decor. An optional concealed bottom bar cylinder lock activates steel tamperproof lock rods. The lock uses a standard mortise cylinder and is available with an optional removable core.

Wood Counter Shutters

Attractive, Handcrafted Wood in a Variety of Wood Species

Wayne Dalton Wood Counter ShutterKey Product Features:

  • Standard Max Width 12’
  • Standard Max Height 8’
  • Unfinished wood slats: 1 3/4″ (16mm) high by 1/2″ (13mm) thick
  • Wide variety of wood

Documents

Handcrafted from Fine Woods

Our wood counter shutter slats, guides and optional hood are fabricated of hand-selected wood. Red oak is standard, but you can select from Douglas fir, white oak, birch, and exotic wood species, or a material that you specify. Shutters are provided unfinished, allowing you to match the shutter to established design elements. The result is a counter shutter that complements the interior aesthetics in a variety of applications.

Solid Construction

Our wood counter shutters are constructed of high-quality flat slats for a good tight fit and enhanced aesthetics. The counterbalance assembly features adjustable helical torsion springs for longer life. An OEM limited warranty — as well as our network of Wayne Dalton dealers — ensures expert installation and dependable service over the life of the shutter.

Customize With Options

Several options are available to further customize our wood counter shutters to meet specific aesthetic and functional requirements. In addition to the choice of wood species, you can specify an optional hood. Crank operation or motor operation are also available as options, and the optional cylinder locks enhance security.

Integral Frame Counter Shutter

Quality, Convenience, and Durability

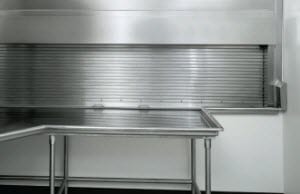

wayne-dalton-integral-frame-counter-shutter-doorKey Product Features:

  • Standard Max Width 12’ 4″
  • Standard Max Height 6′
  • Steel, stainless steel, or aluminum
  • Easy installation

Documents

Easy Installation

Our shutters are built for long-lasting good looks and performance. Whether you choose a curtain of 22-gauge galvanized steel, 22-gauge stainless steel or 1.3 mm aluminum slats, you will receive a shutter door that is both durable and attractive. These doors feature all-steel 16-gauge frames, fascia and hood, as well as 14-gauge sills. Bottom bars, lift handles and slide bolts are fabricated of aluminum, stainless or steel with vinyl astragals for added durability.

Built to Last

Our integral frame counter shutters are constructed of high-quality flat slats for a good tight fit and enhanced aesthetics. The counterbalance assembly features adjustable helical torsion springs for longer life. An OEM limited warranty — as well as our network of Wayne Dalton dealers — ensures expert installation and dependable service over the life of the shutter.

An Attractive and Smart Solution

Interlocking slats with a flat profile provide an attractive and tight fit, while endlocks on alternative slats eliminate lateral movement and maintain curtain alignment. The adjustable counterbalance assembly features helical torsion springs in a steel tube or pipe barrel, presenting a clean, finished look.

If a fire-rated door is required, ask about our FireStar® fire doors, including counter fire doors and shutters.

Self Storage Door Systems

Wayne Dalton commercial roll-up doors, self storage doors and Interior Hallway System are designed specifically to meet the unique demands of the self storage industry. Commercial and mini roll-up doors are available in a wide variety of sizes and colors, to complement virtually any building. The Wayne Dalton Interior Hallway System is a complete, pre-engineered system for climate-controlled, interior storage units. Built for durability it is ideal for new construction or retrofit applications. Flush Cor-O-Wall and corrugated Mod-U-Wall panels can incorporate roll-up doors and swing doors in any configuration.

Guide to Self Storage Doors and Interior Hallway System

Wayne Dalton offers eight door models in a variety of sizes to best suit your needs. Use the chart below to find the doors and Interior Hallway System that fit your application.

Wayne Dalton Model Max Width Max Height Application / Duty Construction
790-CW 20’0″
(6096 mm)
16′ 0″
(4877 mm)
Commercial / Wind Load 26 Gauge Steel
780-CD 16′ 0″
(4877 mm)
16′ 0″
(4877 mm)
Commercial / Wind Load 26 Gauge Steel
DS-350 16′ 0″
(4877 mm)
16′ 0″
(4877 mm)
Commercial 26 Gauge Steel
DS-200 16′ 0″
(4877 mm)
16′ 0″
(4877 mm)
Commercial 26 Gauge Steel
770-SS 10′ 0″
(4877 mm)
10′ 0″
(4877 mm)
Self Storage 26 Gauge Steel
DS-100 10′ 0″
(3048 mm)
10′ 0″
(3048 mm)
Commercial / Light Duty 26 Gauge Steel
DS-75 10′ 0″
(3048 mm)
10′ 0″
(3048 mm)
Mini Storage 26 Gauge Steel
DS-50 12′ 0″
(3658 mm)
6′ 0″
(1829 mm)
Counter Door 26 Gauge Steel

Roll Up Sheet Door Model 790CW

Strong and Durable Sheet Door with Wind Load Ratings

Wayne Dalton Sheet Door 790-CWKey Product Features:

  • Standard Max Width 20’
  • Standard Max Height 16’
  • 14 gauge guides; 11 gauge headplate
  • Curtain Lock, Two-Bolt Double Shackle Lock, or Cylinder Lock
 Wayne Dalton’s Rolling Sheet Door Systems offer the perfect solution when your project requires an attractive and solidly constructed rolling sheet door that is also easy on your budget. These door systems incorporate innovative design elements that enable fast installation and ensure smooth operation for enhanced door life.

Product Information

  • 26-gauge, roll-formed galvanized steel curtain, enhances strength and maximizing wind load performance.
  • Unique curtain profile facilitates smooth operation and minimizes curtain damage
  • Stepped rings allow tight, uniform curtain wrap and minimize headroom requirements
  • Bearings prevent steel-to-steel contact, improve door operation and increase door shaft life

Fast and Easy Installation

  • Quick-connect bottom bar stops minimize fasteners and allow easy insertion of curtain into the guides
  • Universal guide allows fastening in concrete, masonry, or wood jambs and fastening or welding to steel jambs
  • Through-hole design reduces sideroom requirements

Roll Up Sheet Door Model 780CD

A Strong, Smooth Working Door

Wayne Dalton Sheet Door 780-CDKey Product Features:

  • Standard Max Width 16’
  • Standard Max Height 16’
  • 26 Gauge Steel
  • Curtain Lock, Two-Bolt Double Shackle Lock, or Cylinder Lock
  • Motor or Chain Operation
Wayne Dalton’s Rolling Sheet Door Systems offer the perfect solution when your project requires an attractive and solidly constructed rolling sheet door that is also easy on your budget. These door systems incorporate innovative design elements that enable fast installation and ensure smooth operation for enhanced door life.

Product Information

  • 26-gauge, roll-formed galvanized steel curtain, enhances strength and maximizing wind load performance.
  • Unique curtain profile facilitates smooth operation and minimizes curtain damage
  • Stepped rings allow tight, uniform curtain wrap and minimize headroom requirements
  • Bearings prevent steel-to-steel contact, improve door operation and increase door shaft life

Fast and Easy Installation

  • Quick-connect bottom bar stops minimize fasteners and allow easy insertion of curtain into the guides
  • Universal guide allows fastening in concrete, masonry, or wood jambs and fastening or welding to steel jambs
  • Through-hole design reduces sideroom requirements

Roll Up Sheet Door Model DS-350

Commercial Wind Load Rated Sheet Door

Wayne Dalton Sheet Door DS-350Key Product Features:

  • Standard Max Width 16’
  • Standard Max Height 16’
  • 26 gauge steel
  • Curtain Lock, Two-bolt Double Shackle Lock, or Cylinder Lock

WindLoad Information

DS-350 doors have State-wide Florida Product Approval for wind load protection up to 150 mph and have been third party tested for uniform static air pressure.

DS-350 roll-up doors are available in round or square profiles. The continuous curtains are made from hot-dipped galvanized steel, and then finished with silicone polyester paint for beauty and durability. Heavy-duty 13 gauge guides attach to 8 gauge wall angles to give maximum wind load protection. Installation to masonry or steel is quick and simple with no special preparation or overhead tracks needed.

Product Information

  • Corrugated top sheet assembly forms a strong torque cylinder for strength and easy operation, and conceals the spring mechanism.
  • Polypropylene anti-wear strips on continuous guides for sliding metal parts, providing quieter operation and longer service life.
  • Cast windlocks are riveted to curtain as required for wind load rating.
  • Axle casting assembly holds constant door tension, and allows easy adjustments. Heavy-duty steel bracket plates rigidly support axle, spring and door.
  • Drum wheel is deep-drawn galvanized steel with 1-5/16″ steel bearings.
  • Bottom bar assembly includes heavy-duty steel angle, extruded aluminum bottom bar and replaceable tubular-type vinyl astragal.
  • Slide-bolt assemblies made of heavy-duty steel lock the closed door from inside at the bottom corners. For added security, both slide bolts accept padlocks. Exterior curtain lock also available.
  • Wind load door guides are formed from 13-Ga. galvanized steel. DS-350 guides install readily to masonry, concrete, or steel construction.
  • Automatic door stops prevent door from rolling up past header.
  • Tempered steel springs are engineered to counterbalance different door sizes and weights for smooth, easy operation and long service life. Both springs are clip-welded to the axle for correct location and extension.
  • Heavy-duty steel axle supports door curtain and counterbalance system.

Options

  • Direct Drive Chain Hoist for door sizes up to 12′ x 12′
  • Viewlights (non-insulated doors only) – allows occupants see outside without opening the door
  • 4:1 reduced drive chain hoist for door sizes up to 12’1″ x 16′
  • Door insulation featuring two layers of aluminum mylar film laminated to two layers of heavy-duty polyethylene air-bubble material. An R-value of 4 helps control heat gain/loss. Includes flexible vinyl top and side draft stops as weather seals between the door and the building.
  • Electric operator kit adapts any door ro motorized operation
  • Steel mounting plates provide lateral extension of jambs
  • Cam-action spring tensioning device allows easy adjustment of spring tension
  • Heavy duty guide – 13 gauge galvanized G section and 8 gauge galvanized wall angle attached to wood steel or masonry jambs

Roll Up Sheet Door Model DS-200

A Strong and Durable Roll Up Sheet Door

Wayne Dalton Sheet Door DS-200Key Product Features:

  • Standard Max Width 16’
  • Standard Max Height 16’
  • 26 gauge steel
  • Slide Bolt or Curtain Lock

Product Information

Loading docks, outbuildings and large storage facilities are typical uses for the attractive appearance, sturdy construction, and long service life of DS-200 doors.

DS-200 roll-up doors are available in round or square profiles. The continuous curtains are made from hot-dipped galvanized steel, and then finished with silicone polyester paint for beauty and durability. Installation to masonry, steel or wood jambs is quick, and simple — no special preparation, no overhead tracks.

Steel slide-bolt assemblies at each bottom corner secure the closed door from inside. For added protection, the slide-bolts also accept padlocks. A sliding curtain lock also is available for securing the door from outside.

  • Corrugated top sheet assembly forms a strong torque cylinder for strength and easy operation, and conceals the spring mechanism.
  • Corrugated door curtain, available in round or square profile, is hot-dipped, galvanized 26-Ga. steel, primed then finished with high gloss silicone polyester paint.
  • Polypropylene anti-wear strips come factory-installed as continuous guides for sliding metal parts, providing quieter operation and longer service life.
  • Axle casting assembly holds constant door tension, and allows easy adjustments. Heavy-duty steel bracket plates rigidly support axle, spring and door.
  • Drum wheel is deep-drawn galvanized steel with 1-5/16″ steel bearings.
  • Bottom bar assembly includes heavy-duty steel angle, extruded aluminum bottom bar and replaceable tubular-type vinyl astragal.
  • Slide-bolt assemblies made of heavy-duty steel lock the closed door from inside at the bottom corners. For added security, both slide bolts accept padlocks. An exterior sliding curtain lock also is available.
  • Roll-up door guides are 14-Ga. galvanized steel, 2″ wide. DS-200 guides install to masonry, steel or wood construction equally well.
  • Automatic door stops prevent door from rolling up past the header.
  • Tempered steel springs are engineered to counterbalance different door sizes and weights for smooth, easy operation and long service life. Both springs are clip-welded to the axle for correct location and extension.
  • Heavy-duty steel axle supports door curtain and counterbalance system.

Options

  • Direct Drive Chain Hoist for door sizes up to 12′ x 12′
  • Viewlights (non-insulated doors only) – allows occupants see outside without opening the door
  • 4:1 reduced drive chain hoist for door sizes up to 12’1″ x 16′
  • Door insulation featuring two layers of aluminum mylar film laminated to two layers of heavy-duty polyethylene air-bubble material. An R-value of 4 helps control heat gain/loss. Includes flexible vinyl top and side draft stops as weather seals between the door and the building.
  • Electric operator kit adapts any door ro motorized operation
  • Steel mounting plates provide lateral extension of jambs
  • Cam-action spring tensioning device allows easy adjustment of spring tension
  • Heavy duty guide – 13 gauge galvanized G section and 8 gauge galvanized wall angle attached to wood steel or masonry jambs

Roll Up Sheet Door Model 770SS

A Strong, Smooth Working Door

Wayne Dalton Sheet Door 770-SSKey Product Features:

  • Standard Max Width 10’
  • Standard Max Height 10’
  • 18 gauge guides; 14 gauge headplate
  • Slide Bolt or Curtain Lock
  • Motor or Chain Operation

Wayne Dalton’s Rolling Sheet Door Systems offer the perfect solution when your project requires an attractive and solidly constructed rolling sheet door that is also easy on your budget. These door systems incorporate innovative design elements that enable fast installation and ensure smooth operation for enhanced door life.

Product Information

  • 26-gauge, roll-formed galvanized steel curtain, enhances strength of door.
  • Unique curtain profile facilitates smooth operation and minimizes curtain damage
  • Stepped rings allow tight, uniform curtain wrap and minimize headroom requirements
  • Bearings prevent steel-to-steel contact, improve door operation and increase door shaft life
  • Optional left-side lock and step plate
  • Optional header draft seal
  • Optional wind load: integrated curtain wind loacks and guide to withstand wind loading to minimum design pressures of 36/-36 psf (175/-175 kgf/sq m)

Fast and Easy Installation

  • Quick-connect headplate eliminates the need for multiple fasteners
  • Quick-connect bottom bar stops minimize fasteners and allow easy insertion of curtain into the guides
  • Universal guide allows fastening in concrete, masonry, or wood jambs and fastening or welding to steel jambs
  • Through-hole design reduces sideroom requirements

Roll Up Sheet Door Model DS-100

Versatile and Strong Light Commercial Roll Up Sheet Door

Wayne-Dalton-Sheet Door DS-100Key Product Features:

  • Standard Max Width 10’
  • Standard Max Height 10’
  • 26 gauge steel
  • Slide Bolt or Curtain Lock

Product Information

Mini-storage buildings, loading docks and service buildings benefit from the versatility, sturdy construction, easy operation and long service life of DS-100 doors.

DS-100 roll-up doors are available in round or square profiles. The continuous curtains are made from hot-dipped galvanized steel, and then finished with silicone polyester paint for beauty and durability. Installation to masonry, steel or wood jambs is quick, and simple — no special preparation, no overhead tracks.

Steel slide-bolt assemblies at each bottom corner secure the closed door from inside. For added security, the slide-bolts also accept padlocks. Available exterior mini curtain lock accepts two shackle locks: one for storage tenant security, the other for building owner risk-protection.

      • Corrugated door curtain, available in round or square profile, is hot-dipped galvanized 26-Ga. steel, primed then finished with high gloss, silicone polyester paint.
      • Polypropylene anti-wear strips come factory-installed as continuous guides for sliding metal parts, providing quieter operation and longer service life.
      • Rigid support bracket with bearings hold constant door tension, and allow easy adjustments.
      • Bottom bar assembly includes heavy-duty steel angle, extruded aluminum bottom bar and replaceable tubular-type vinyl astragal.
      • Slide-bolt assemblies fabricated of heavy-duty steel lock the closed door from inside at the bottom corners (not shown; door has optional mini curtain lock.) For added security, both slide bolts accept padlocks.
      • Roll-up door guides are 18-Ga. galvanized steel, 2″ wide. DS-100 guides install to masonry, steel or wood construction equally well.
      • Automatic door stops prevent door from rolling up past the header.
      • Oil-tempered steel spring is engineered to counterbalance different door sizes and weights for smooth, easy operation.
      • Heavy-duty steel axle supports door curtain and counterbalance system.
      • Optional door insulation features two layers of aluminum mylar film laminated to two layers of heavy duty polyethylene air-bubble material. An R-value of 4 helps control heat gain/loss. Includes flexible vinyl top and side draft stops as weather seals between the door and the building.

Mini Storage Building Doors DS 75

Perfect Solution for Mini-Storage Buildings

Wayne Dalton Sheet DoorKey Product Features:

  • Standard Max Width 10’
  • Standard Max Height 10’
  • 26 gauge steel
  • Curtain Lock

Product Information

Both owners and tenants of mini-storage buildings benefit from the sturdy construction, easy operation and long service life built into DS-75 doors.

DS-75 roll-up doors are available in round or square profiles. The continuous curtains are made from hot-dipped galvanized steel, and then finished with silicone polyester paint for beauty and durability.

Installation to masonry, steel or wood jambs is quick, and simple — no special preparation, no overhead tracks.

Concealed locking slide assembly accepts two shackle locks for equal owner/tenant security. Lockout feature provides owner risk protection.

DS-75 Mini Roll-Up Doors are available in sizes to 10′ x 10′, and a variety of standard and special colors. You get the doors you need with timely delivery and attractive pricing.

  • Corrugated door curtain, available in round or square profile, is hot-dipped galvanized 26-Ga. steel, primed then finished with high gloss silicone polyester paint.
  • Polypropylene anti-wear strips come factory-installed as continuous guides for sliding metal parts, providing quieter operation and longer service life.
  • Rigid support bracket with bearings hold constant door tension, and allow easy adjustments.
  • Bottom bar assembly includes heavy-duty steel angle, roll-formed galvanized steel bottom bar and replaceable blade type vinyl astragal.
  • Curtain lock assembly attaches to the exterior curtain, accepts pad locks or cylinder locks for owner/tenant security. Includes lock-out feature.
  • Roll-up door guides are 18-Ga. galvanized steel. DS-75 guides install to masonry, steel or wood construction equally well.
  • Automatic door stops prevent door from rolling up past the header.
  • Oil-tempered steel spring is engineered to counterbalance different door sizes and weights for smooth, easy operation.
  • Heavy-duty steel axle supports door curtain and counterbalance system.
  • Optional Door Insulation features two layers of aluminum mylar film laminated to two layers of heavy duty polyethylene air bubble material. An R-value of 4 helps control heat gain/loss. Includes flexible vinyl top and side draft stops as weather seals between the door and the building.

Roll Up Sheet Doors Model DS50

A Strong, Smooth Working Door

Wayne Dalton Key Product Features:

  • Standard Max Width 12’
  • Standard Max Height 6’
  • 26 gauge steel
  • Slide Bolt or Curtain Lock

Product Information

  • Our attractive counter shutters harmonize with virtually any building decor while protecting property from pilferage and unauthorized entry.
  • DS-50 Roll-Up Counter Shutters are available in round or square profiles. The continuous curtains are made from hot-dipped galvanized steel, and then finished with silicone polyester paint for beauty and durability.
  • Stepped rings allow tight, uniform curtain wrap and minimize headroom requirements
  • Steel slide-bolt assemblies at each inside bottom corner secure the shutter in its fully closed position. Both slide-bolts also accept padlocks. A sliding mini curtain lock also is available for securing the shutter from outside.
  • Oil-tempered steel spring is engineered to counterbalance different door sizes and weights for smooth, easy operations



Top of the Page



Wayne Dalton offers a complete line of Commercial Door Systems for virtually any application of industrial and commercial buildings throughout the world.

Our full line of sectional doors include models that are ideal for jobs that call for excellent thermal values, have stringent wind load requirements, or simply need a high performing door designed for long life and superior strength.

Wayne Dalton rolling doors have a long history of excellence in design for common to extraordinary applications that meet and often exceed the expectations of our wide range of domestic and international customers.

We invite you to explore these systems in depth on our web site. If you have additional questions or can’t find exactly what you are looking for, our Commercial Specialists are skilled at helping specify the best door for a given project. They are specifically trained to answer questions regarding special applications, custom doors, ordering, delivery, and virtually anything else related to commercial doors.





Need More Information? Give us a call at 800-724-4052 to speak with an Overhead Door representative or click here to contact us by email.

At Beaton Industrial we sell, install and service overhead doors of every size, shape and style. Among our many styles of doors available are sectional doors, rolling doors, coiling doors, rolling grilles, fabric doors, impact doors, high speed roll up doors, and fire-coiling doors.

We are proud to offer Overhead Door sales and parts support nationwide. Beaton Industrial offers Overhead Door installation, preventative maintenance, and 24/7 emergency breakdown repair service throughout New York state including the cities of Utica, Albany, Syracuse, Watertown, Binghamton, Poughkeepsie, and Plattsburgh New York.
