How To Select a Hoist Trolley

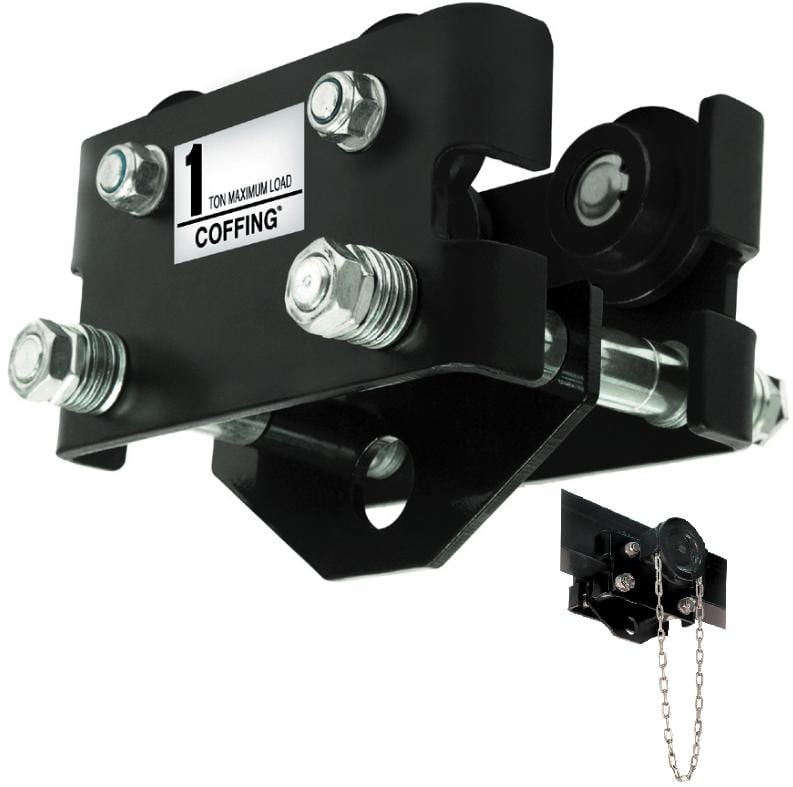

Coffing CBT Plain & Geared Hoist Trolley

The Coffing CBT Model hoist Trolley is available in plain or geared models, the CBT is the economical choice for most applications. The trolley features steel wrap around side plates, dual tread wheels and lifetime lubricated shielded ball bearings. All the CBTs’ features combine to ensure you a trolley that is smooth rolling, versatile and reliable.
  • Coffing CBTP Plain Style Hoist TrolleyCapacities – Rated loads from 1/4 to 5 Ton (Metric Rated). In plain and geared models.
  • Economical – Excellent low cost choice for manual and powered hoists.
  • Rugged – Designed to provide superior performance and long, efficient service.
  • Low Rolling Effort – Geared models have standard 15-foot hand chain drop. Other hand chain drops available.
  • Universal Hanging Clevis – Accepts most hook mounted hoists.
  • Adjustable – Trolley easily adjusts to fit any beam flange within range of adjustment, up to an 8.7″ flange width.
  • Wrap-Around Side Plates – Lugs provide additional security to increase operator safety and act as bumpers to protect wheels.
  • Dual Tread Wheels – Will fit either tapered or flat beam flange within range of adjustment. Wheels include permanently lubricated, shielded ball bearings for long life and low maintenance.
  • Lifetime Warranty

 Specifications

Capacity

Model Number*

Beam Height (in.)

I-Beam Width (in.)

Minimum Radius Curve

Wheel Tread Diameter

Net Weight (lb.)

lb

Ton

500

1/4

CBTP-0025

4-24

2.0-8.7

27

2.36

19

1000

1/2

CBTP-0050

4-24

2.0-8.7

27

2.36

19

2000

1

CBTP(G)-0100

5-24

2.3-8.7

36

2.36

26

3000

1.5

CBTP(G)-0150

6-24

2.3-8.7

45

3.15

46

4000

2

CBTP(G)-0200

6-24

2.3-8.7

45

3.15

46

6000

3

CBTP(G)-0300

8-24

3.0-8.7

55

4.41

86

10000

5

CBTP(G)-0500

10-24

3.5-8.7

70

4.92

130

  • *Metric Rated
  • **When Ordering, specify “P” for plain hoist trolley or “G” for geared hoist trolley.

Brochure Download – Coffing CBTP & CBTG Hoist Trolley

Need Pricing? Contact us by phone or email.

__________________________________________________________________________________________________

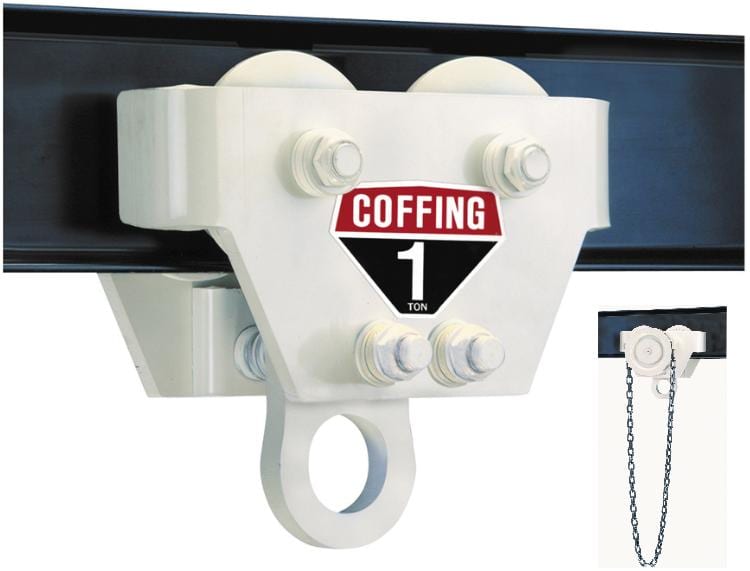

CTA Plain & Geared Trolleys

The Coffing CTA Model hoist trolley features and enhanced design, and available in plain and geared models which can be modified to fit a wide range of beam sizes and styles. The CTA is designed to provide easy operation and superior performance in industrial lifting applications.
  • Coffing CTA Plain Style Hoist TrolleyCapacities – Rated loads from 1/4 to 5 Tons in plain and geared models. Geared hoist trolley has standard 6-foot hand chain drop. Other hand chain drops available.
  • Rugged – Designed to provide superior performance and long, efficient service.
  • Easy Operation – Lowest rolling effort in the Coffing trolley line.
  • Universal Mounting – Clevis accepts all Coffing hook-mounted hoists, or lug-mounted hoists attached directly to load pins.
  • Increased Adjustable – Hoist trolley easily conforms to any beam flange within range of adjustment. For larger flange width, please consult factory.
  • Wrap-Around Side Plates – Lugs provide additional security for operator and act as bumpers to protect wheels.
  • Dual Tread Wheels – Fully manchined wheels fit any tapeered or flat flanged beams with range of adjustment. Wheels included permanently lubricated, shielded ball bearings for long life and low maintenance.
  • Options – Spark resistant and corrosion resistant wheels available.  Track clamps available on 1/4 to 4 ton models.
  • Lifetime Warranty

Specifications

Capacity

Model Number*

Beam Height (in.)

I-Beam Width (in.)

Minimum Radius Curve

Net Weight Pln/Gear

lb

Ton

500

1/4

CTA-05P(G)

6-18

3.33-7.00

48

46/52

1000

1/2

CTA-10P(G)

6-18

3.33-7.00

48

46/52

2000

1

CTA-20P(G)

6-18

3.33-7.00

48

46/52

4000

2.0

CTA-40P(G)

6-18

3.33-7.00

48

46/52

6000

3

CTA-60P(G)

6-18

3.33-7.00

48

46/52

8000

4

CTA-80P(G)†

6-18

3.33-7.00

**

125/130

10000

5

CTA-100P(G)†

6-18

3.33-7.00

**

125/130

  • *When Ordering, specify “P” for plain trolley or “G” for geared trolley.
  • ** Standard model for track only. Articulating model for 4-foot minimum radius curve available – Consult Beaton Industrial
  • † Eight-wheel trolley design reduces beam flange stress.

 Brochure Download – Coffing CTA Model Trolley – See page #2

 Need Pricing? Contact us by phone or email.

__________________________________________________________________________________________________

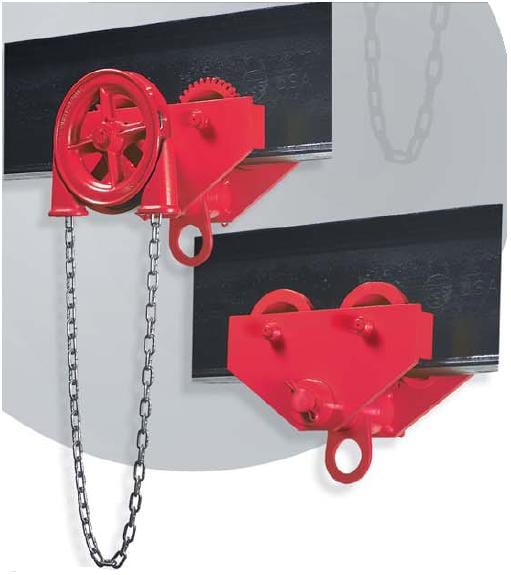

 CYA Plain & Geared Trolleys

The Coffing CYA Hoist Trolley is designed for heavy duty service with fully sealed, precision bearings, heavy-duty side plates, and machined wheel tread provide superior performance and long lift with minimal maintenance.
  • Coffing CYA Plain Geared Hoist TrolleyCapacities – Available in capacities ranging from 4 through 25 ton; with 30, 40, and 50 ton trolleys available as tandem construction.
  • Dual Tread – 4 through 12 ton capacity trolleys have dual tread wheels for standard and wide flange beams.
  • Bearings – Trolleys are equipped with eight sealed, Timken tapered roller bearings and grease fittings.
  • Side Frames – Heavy rolled steel frames extend beyond the wheels to act as bumpers.
  • Wheels Keep On Rolling – Trolley wheels are machined from cast iron alloy and hardened for high strength and long lift.
  • Swinging Chain Guide – Geared versions have fully machined track wheel gears and incorporate a swinging chain guide, which keeps the hand chain aligned and free from jamming.
  • Requirements – Consult factory for additional beam sizes and patented track applications
  • Lifetime Warranty

Specifications

Capacity

Model Number*

Beam Height (in.)

I-Beam Width (in.)

Minimum Radius Curve

Net Weight Pln/Gear

lb

Ton

8000

4

CYA-80P(G)

8-24

4.00-7.00

36

155/184

10000

5

CYA-100P(G)

8-24

4.00-7.00

36

160/188

12000

6

CYA-120P(G)

8-24

4.00-7.00

36

160/188

16000

8

CYA-160P(G)

10-24

4.63-8.00

60

300/347

20000

10

CYA-200P(G)

10-24

4.63-8.00

60

310/360

24000

12

CYA-240P(G)

10-24

4.63-8.00

60

310/360

32000

16

CYA-320P(G)

18-24

6.00-8.00

96

800/895

40000

20

CYA-400P(G)

18-24

6.00-8.00

96

845/955

50000

25

CYA-500P(G)

18-24

6.00-8.00

120

1045/1200

  •  * When ordering, specify “P” for plain trolley or “G” for geared trolley.

Brochure Download – Coffing CYA Trolley – See page #3

 Need Pricing? Contact us by phone or email.

__________________________________________________________________________________________________

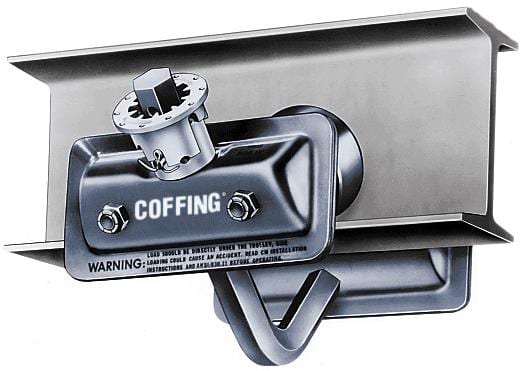

Coffing VT-A Push Type Hoist Trolley

The Coffing VT-A Trolleys are a versatile, push type, industrial grade hook mount trolley. Incorporating universal wheel tread design, the VT-A is ideal for use on a variety of American Standard Beams, wide flange beams and patented track applications.
  • Coffing VT-A Plain Push Type Hoist TrolleyCapacities – Rated loads from 1/4 – 3 Ton
  • Unique Side Frame / Load Bar Design – “Dial Fit” adjusting collar reduces installation time from 40 minutes to less than 4 minutes.
  • Shielded Double Row Ball Bearings – Smooth rolling for longer life and greater efficiency.
  • Negotiates Small Radius Curves – 7 in. to 1 Ton capacity.
  • Lifetime Warranty

Specifications

Capacity

Model Number*

Depth of Beam

Flange Width (in.)

Tread Diameter (in.)

Minimum Radius Curve (in.)

Net Weight

lb

Ton

(lbs.)

500

1/4

VT-05-A

4-12

2-5/8
– 5-1/16

2-3/4

7

9

1000

1/2

VT-10-A

4-12

2-5/8
– 5-1/16

2-3/4

7

9

2000

1

VT-20-A

4-12

2-5/8
– 5-1/16

2-3/4

7

10

3000

1.5

VT-30-A

6-15

3-3/8
– 5-5/8

3-1/2

10

23

4000

2

VT-40-A

6-15

3-3/8
– 5-5/8

3-1/2

10

23

6000

3

VT-60-A

8-18

4
– 6-1/4

3-1/2

10

29

Brochure Download – Coffing VT-A Trolley – see page #4

Need Pricing? Contact us by phone or email.

__________________________________________________________________________________________________

 Motorized Trolley’s

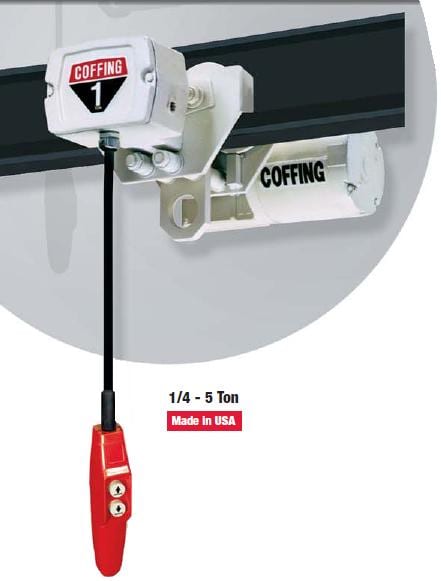

Coffing MT Model – Motorized Hoist Trolley

The Coffing MT model trolley features rugged construction with wrap-around side plates and heat treated wheels for reliable service. Universal clevis allows quick mounting of most hook mounted electric chain hoists.
  • Coffing MT Motorized Powered Hoist TrolleyCapacities – Rated loads from 1/4 to 5 Tons. Push button drop is 6-feet.
  • Voltages – 115/230, 208 – single phase; 230/460, 208, 220/380, 575 – three phase. 60 hertz standard, 50 hertz available.
  • Speeds – 35 and 75 feet per minute (FPM) speeds standard with optional speeds of 18, 24, 50, 100, and 150 FPM.
  • Two-Speed Models – Optional with 3 to 1 speed ration, three-phase, single voltage only. Slow speed feature for gentler start and greater positioning accuracy.
  • Mounting – Universal clevis will accept top hook models. Can change EC and JLC suspensions to lug mount directly to MT trolley – consult factory.
  • Trolley Design – 4-wheel design on 1/4 – 3 Ton and under. 8-wheel design on 4 and 5-Ton for reduced beam flange stresses. Specify track type and beam size.
  • NEMA 3R Push Button – Ergonomic design fits operator’s hand for thumb or two-handed operation. 24 Volt Control standard for operator safety. 115 Volt Control available upon request.
  • Accessories – Trolley brake and other options available to meet a variety of applications.
  • Lifetime Warranty

Specifications

Capacity

Model Number*

Motor H.P.

Trolley Speed*

Flange Width (in.)

Minimum Radius Curve

Net Weight

lb

Ton

(lbs.)

500

1/4

MT-05035

1/4

35
or 75

3.332
– 7

48

115

500

1.4

MT-05075

1/4

35
or 75

3.332
– 7

48

115

1000

1/2

MT-10035

1/4

35
or 75

3.332
– 7

48

115

1000

1/2

MT-10075

1/4

35
or 75

3.332
– 7

48

115

2000

1

MT-20035

1/4

35
or 75

3.332
– 7

48

115

2000

1

MT-20075

1/4

35
or 75

3.332
– 7

48

115

3000

1.5

MT-30035

1/4

35
or 75

3.332
– 7

48

115

3000

1.5

MT-30075

1/4

35
or 75

3.332
– 7

48

115

4000

2

MT-40035

1/4

35
or 75
