HYDRAULIC DOCK LEVELER

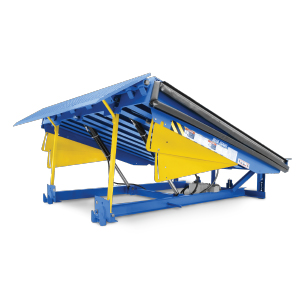

Hydraulic Dock LevelerAn impressive combination of usability and longevity, Blue Giant Hydraulic Dock Levelers are high-performance systems that operate at the touch of a button. Strategically welded enhanced J-beams provide an exceptional level of structural sturdiness, improving product lifetime.

Hydraulic deck and lip cylinders increase operating efficiency and reduce maintenance requirements, resulting in a significantly lower total cost of ownership compared to mechanical units. Optional independent lip control is available for all models, decreasing both cycle time and energy use (Blue Genius™ Touch Control Panel required).

Superior craftsmanship, ease of operation, and a robust suite of advanced safety features make the Blue Giant Hydraulic Dock Leveler an ideal choice for increased productivity at the loading dock.

STRUCTURAL INTEGRITY

Eight (8) enhanced J-beam channels are welded to the underside of the deck at dynamic impact points to prevent distortion and extend the lifetime of the dock leveler.

Hydraulic Brochure

Hydraulic Dock Leveler LiteraturePRODUCT HIGHLIGHTS

  • Platform flexes up to 4″ (102mm) under load, maintaining full-width contact between the lip and the truck bed
  • Inverted deck cylinder self-bleeds continually, reducing internal corrosion and increasing velocity fuse efficiency
  • Continuous one-piece headboard system intensifies the strength of the deck’s front structure
  • High tensile J-beams allow the deck to flex side to side while maintaining back to front rigidity without distorting
Request Pricing

Dock Leveler Quote

Standard Features

  • Fixed rear hinge with 4″ (101mm) lateral ramp flex to compensate for non-level trailer bed.
  • Working range of 12″ (305mm) above and 12″ (305mm) below dock level.
  • Structural deck support includes minimum six each high-tensile solid steel U-beam members
  • High tensile steel deck & lip
  • 16″ (406mm) long lip, (lip is tapered on 7′ wide models)
  • The single push button control station (model SP1) raises an independent hydraulic dock leveler via a constant pressure “I” (UP) button.
  • Control station is NEMA4X/IP65 rated, 3-1/4″ W x 6-1/2H x 5-1/8″D (83 x 165 x 130mm) in size.
  • Beveled lip
  • Self-contained TENV 1 HP power pack mounted under deck (specify voltage)
  • (2) DB411 laminated bumpers, dual flange (4.5″ x 14″ 10″) standard for 6′ and 6’6″ wide
  • (2) DB411WB laminated bumpers, single flange (4.5″ x 11.25″ x 10″) standard for 7′ wide
  • V-grooved maintenance strut
  • Full operating range toe guards painted safety yellow
  • Hydraulic (velocity fuse) fall-safe
  • Inverted hydraulic loading dock leveler deck cylinder, self purges air
