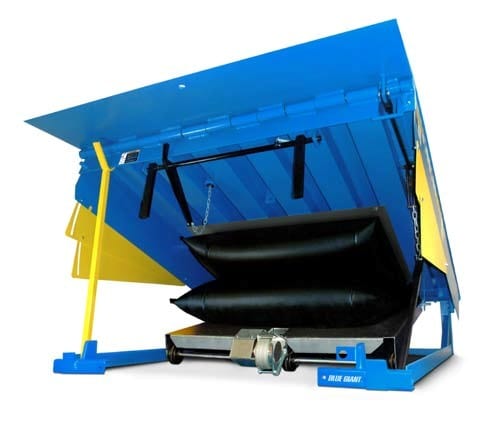

Blue Giant U-Series Air Bag Dock LevelerAir Bag Loading Dock Leveler

Standard Features

  • Blower Motor – Activates the leveler by delivering air on demand.
  • Heavy Duty Air Bags – Damage-resistant and reliable performance in all temperature conditions.
  • Aircraft Cables – Raise the deck by pulling on the roller arm.
  • Roller Arm – Raises the deck once activated by the aircraft cables.
  • Lip Deployment Mechanism – Enables smooth lip deployment.
  • Fixed Rear Hinge – Lets the deck flex up to 4″ under load. May be upgraded to Assured Motion Float – a 4″ maintained deck tilt.

Easy to Operate

  • The U-Series air bag loading dock leveler comes standard with a NEMA4X/IP65 rated single push button control for sequenced deck and lip operation. When activated, the air bags inflate, raising the deck. When the button is released, the bags deflate, allowing the deck to lower smoothly onto the trailer bed.

Structural Integrity

  • A minimum of six heavy-duty U-beam channels are welded to the underside of the deck at dynamic impact points, preventing ‘dishing’ and extending the life of the dock leveler. For more demanding applications, the standard fixed rear hinge design can be advanced to assured motion float, a 4″ maintained deck tilt that allows the dock leveler to withstand heavier usage without experiencing deck fatigue.

The Power of Air

  • The high-volume, low-pressure air lifting system is a environmentally friendly alternative to oil-powered hydraulics. The air bags can operate in extreme temperature conditions and withstand pressure without over-inflating. Their PVC-coated polyester fibres make the bags resistant to chemical or puncture damage.

Designed with Safety in Mind

  • The airbag dock leveler operates safely and efficiently under the toughest conditions; temperature extremes, heavy usage, and exposure to caustic substances. The deck flexes under load to allow a smooth cross-docking transition, minimizing the risk of worker injury and cargo or equipment damage. The fall-safe system provides additional protection by limiting platform free-fall.

Dock Leveler Quote

Air Bag Loading Dock Leveler – Catalog Download – Blue Giant U-series


MODEL
CAPACITY

(LBS)

DECK SIZE

W x L – INCLD. 16” LIP

WEIGHT

ABU6006-30

30,000

6’ x 6’

1,575

ABU6006-35

35,000

1,605

ABU6006-40

40,000

1,655

ABU6006-45

45,000

1,705

ABU6008-30

30,000

6’ x 8’

1,735

ABU6008-35

35,000

1,815

ABU6008-40

40,000

1,865

ABU6008-45

45,000

1,915

ABU6606-30

30,000

6’6” x 6’

1,735

ABU6606-35

35,000

1,815

ABU6606-40

40,000

1,865

ABU6606-45

45,000

1,915

ABU6608-30

30,000

6’6” x 8’

1,995

ABU6608-35

35,000

2,075

ABU6608-40

40,000

2,125

ABU6608-45

45,000

2,175

ABU7006-30

30,000

7’ x 6’

1,680

ABU7006-35

35,000

1,760

ABU7006-40

40,000

1,810

ABU7006-45

45,000

1,860

ABU7008-30

30,000

7’ x 8’

1,945

ABU7008-35

35,000

2,025

ABU7008-40

40,000

2,075

ABU7008-45

45,000

2,125

*45,000 lb Units Require Longer Lead Times*





Beaton Industrial provides Air Bag Loading Dock Leveler sales nationwide and  on-site service throughout New York state. Our loading dock equipment representatives and service technicians travel to Utica, Syracuse, Binghamton, Albany, Watertown, Ithaca, Poughkeepsie, Potsdam, and Plattsburgh NY on a daily basis. If you would like to speak with a loading dock representative, please contact us.[/fusion_builder_column][/fusion_builder_row][/fusion_builder_container]
