The Air Cylinder Dock Leveler has been DISCONTINUED

Click here for other options

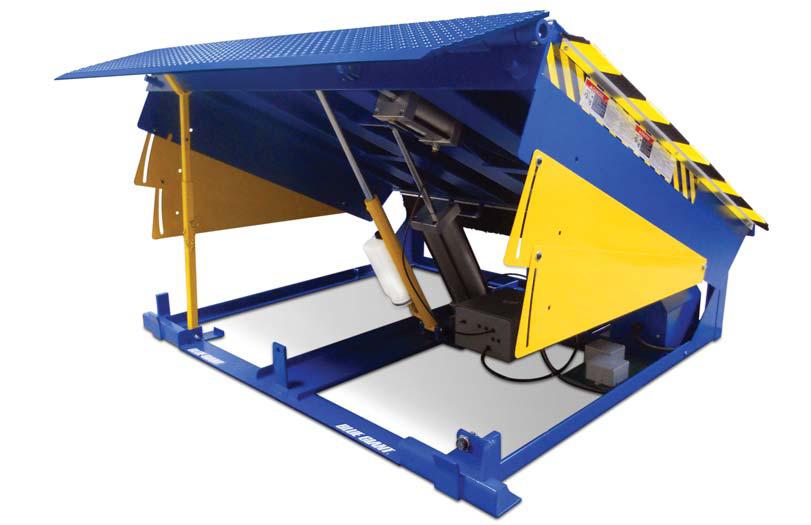

Blue Giant U-Series Air Cylinder Loading Dock Leveler

Standard Features

  • Air Compressor – Tankless and oil-free. Delivers air on demand for smooth and steady performance.
  • Air-Powered Lip Cylinder – Independent lip control for fast cycle time.
  • Air-Powered Lifting Cylinder – Uses the power of air for safe and efficient deck deployment.
  • Fixed Rear Hinge – Lets the deck flex up to 4″ under load. May be upgraded to Assured Motion Float – a 4″ maintained deck tilt.

On Demand Air System

  • The U-Series Air Cylinder dock leveler’s unique design radically changes the industry standard for air actuated dock equipment. Powered by a tankless, oil-free compressor, it delivers the traditional advantages of an airbag dock leveler; clean performance, reduced operating cost, and fewer moving parts. But enhanced safety features and independent lip control give the Air Cylinder Dock Leveler the reliability of a hydraulic dock…without the oil.

Designed with Safety in Mind

  • Blue Giant’s air cylinder lifting technology eliminates safety concerns associated with airbag dock leveler: punctured air bags and inability to halt dock deployment during an emergency. The deck flexes under load to allow a smooth cross-docking transition, minimizing the risk of worker injury and cargo or equipment damage. A fluid-based velocity fuse limits platform free-fall.

Intelligent Touch Controls

  • The air cylinder dock leveler comes standard with the popular Blue Genius Gold Series 1 Touch Control Panel. This advanced control station’s LCD menu screen displays clear instructions for operating and troubleshooting the dock leveler via touch-sensitive buttons. A STOP button freezes the dock in mid-travel should an emergency arise.

Structural Integrity

  • A minimum of six heavy-duty U-beam channels are welded to the underside of the deck at dynamic impact points, enabling a stronger distributed load. For more demanding applications, the standard fixed rear hinge design can be advanced to Assured Motion Float, a 4″ maintained deck tilt that allows the dock leveler to withstand heavier usage without experiencing deck fatigue. The air cylinder dock leveler is a powerful dock system that only needs air to keep productivity and safety at optimum levels.

Dock Leveler Quote

Brochure Download – Blue Giant Air Cylinder Loading Dock Leveler



MODEL
CAPACITY

(LBS)

DECK SIZE

W x L – INCLD. 16” LIP

WEIGHT

ACU6006-30

30,000

6’ x 6’

1,250

ACU6006-35

35,000

1,300

ACU6006-40

40,000

1,350

ACU6006-45

45,000

1,400

ACU6008-30

30,000

6’ x 8’

1,400

ACU6008-35

35,000

1,450

ACU6008-40

40,000

1,500

ACU6008-45

45,000

1,550

ACU6010-30

30,000

6’ x 10’

1,550

ACU6010-35

35,000

1,600

ACU6010-40

40,000

1,650

ACU6010-45

45,000

1,700

ACU6606-30

30,000

6’6” x 6’

1,350

ACU6606-35

35,000

1,400

ACU6606-40

40,000

1,450

ACU6606-45

45,000

1,500

ACU6608-30

30,000

6’6” x 8’

1,600

ACU6608-35

35,000

1,650

ACU6608-40

40,000

1,700

ACU6608-45

45,000

1,750

ACU6610-30

30,000

6’6” x 10’

1,650

ACU6610-35

35,000

1,700

ACU6610-40

40,000

1,750

ACU6610-45

45,000

1,800

ACU7006-30

30,000

7’ x 6’

1,525

ACU7006-35

35,000

1,550

ACU7006-40

40,000

1,600

ACU7006-45

45,000

1,650

ACU7008-30

30,000

7’ x 8’

1,725

ACU7008-35

35,000

1,750

ACU7008-40

40,000

1,800

ACU7008-45

45,000

1,850

ACU7010-30

30,000

7’ x 10’

1,875

ACU7010-35

35,000

1,925

ACU7010-40

40,000

1,975

ACU7010-45

45,000

2,025

*45,000 lb Units Require Longer Lead Times*
