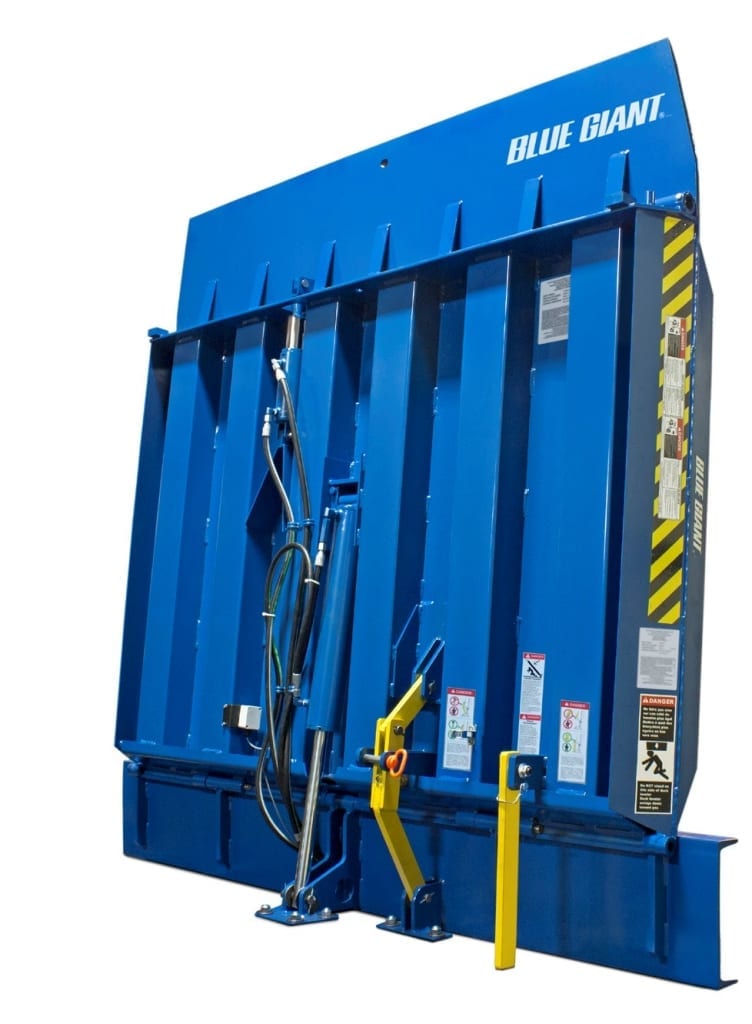

Vertical Loading Dock Leveler

Vertical Loading Dock Levelers are used in a wide variety of refrigeration application including FDA compliant refrigerated loading docks.

Features

  • The dock is stored in the vertical position behind the overhead door allowing for a complete energy efficient seal.
  • Allows overhead door to close completely.
  • Helps to improve facility temperature control, humidity control, door damage, security, and cleanliness.
  • Constant pressure style down button ensures controlled lowering during operation.
  • 1 HP Motor

Vertical Loading Dock Leveler Brochure Blue Giant VL Series

Structural Integrity

  • One-piece hinge pin
  • Heavy-duty 6″ x 4″ wide flange structural I-beam deck support
  • Six rear vertical supports
  • Structural warranty based on application usage

Hydraulic System

  • Double-acting lip cylinder
  • Hydraulic fall safe
  • Automatic vertical compensation when in working range

Dock Leveler Quote

Blue Giant U-Series Vertical Loading Dock Leveler in Action – (Video)

Need a catalog? Just ask, and we’ll email it to you!



Ask a Question
Request Pricing
Receive a Call




MODEL
CAPACITY

(LBS)

DECK SIZE

W x L – INCLD. 16” LIP

WEIGHT

VU6005-30

30,000

6’ x 5’

1,430

VU6005-35

35,000

1,650

VU6005-40

40,000

1,760

VU6005-45

45,000

1,810

VU6006-30

30,000

6’ x 6’

1,595

VU6006-35

35,000

1,815

VU6006-40

40,000

1,925

VU6006-45

45,000

1,975

VU7005-30

30,000

7’ x 5’

1,650

VU7005-35

35,000

1,870

VU7005-40

40,000

1,980

VU7005-45

45,000

2,030

VU7006-30

30,000

7’ x 6’

1,815

VU7006-35

35,000

2,035

VU7006-40

40,000

2,145

VU7006-45

45,000

2,195

VU7008-30

30,000

7’ x 8’

2,245

VU7008-35

35,000

2,465

VU7008-40

40,000

2,575

VU7008-45

45,000

2,625

Beaton Industrial provides Vertical Loading Dock Leveler sales nationwide and  on-site service throughout New York state. Our loading dock equipment representatives and service technicians travel to Utica, Syracuse, Binghamton, Albany, Watertown, Poughkeepsie, Ithaca, Potsdam, and Plattsburgh NY on a daily basis. If you would like to speak with a loading dock representative, please contact us. 800-724-4052
