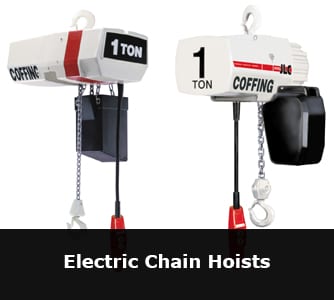

Electric Chain Hoist
Air Chain Hoist
Wire Rope Hoist
Hand Chain Hoist - Chain Fall
Ratchet Lever Hoist
How to select a chain hoist

What will you demand of your new hoist?

Take a moment to review the Hoist Duty Classification drop down menu to the right, and get an understanding of what kind of hoist your application requires.

Purchasing an H5 severe duty hoist when all you need is an H1 standby duty, can be a very costly mistake. The same can be said for purchasing an H2 light duty hoist when your application really calls for an H4 heavy duty hoist.

It's important to know what you're buying, and what you can expect from it. If you have any trouble determining the proper classification for your application, please give us a call at 800-724-4052.

Be sure to look for the Hoist Duty Classification in the description for the hoists listed below.

H1 - Hoist Class | Infrequent or Standby Duty

The H1 hoist class designation is reserved for hoists used in infrequent or standby applications. Commonly found in Powerhouse and Utilities applications, H1 hoists are used primarily to install and service heavy equipment, where loads frequently approach hoist capacity, with periods of utilization being infrequent and widely scattered. Maximum on time = 8 min/hr. Maximum Starts = 75/hr

The H2 hoist class designation is reserved for hoists used in light duty applications. Commonly found in light machine and fabrication shops, H2 hoists are primarily used in shops where loads and use are randomly distributed, with capacity loads handled infrequently. Total running time does not exceed 10-15% of the work period. Maximum on time = 8 min/hr. Maximum Starts = 75/hr

The H3 hoist class designation is reserved for hoists used in standard duty applications. Commonly used in general machine shops, fabrication shops, assembly, storage, and warehousing. H3 hoists are primarily used in shops where loads and use are randomly distributed, and used more frequently than an H1 or H2 hoist. Total running time does not exceed 15-25% of the work period. Maximum on time = 15 min/hr. Maximum Starts = 150/hr

The H4 hoist class designation is reserved for hoists used in heavy duty applications. Commonly found in high volume handling applications, H4 hoists are used in steel warehouses, machine shops, fabricating plants, mills, and foundries to name a few. Total running time typically approaches 50% of the work period. Maximum on time = 30 min/hr. Maximum Starts = 300/hr

The H5 hoist class designation is reserved for hoists used in severe duty applications. Commonly found in applications around bulk handling of material in combination with buckets, magnets, or other heavy attachments. Equipment is often cab operated.  Total running time approaches continuous operation. User must specify exact details of operation, including weight of attachments. Maximum on time = Up to continuous. Maximum Starts = 600/hr

Our Most Popular Electric Chain Hoists

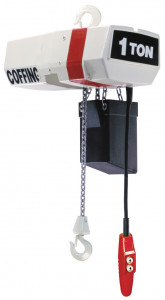

Coffing EC Chain HoistCoffing EC Chain Hoists | Hook & Lug Suspension



High performance hoists engineered for heavy duty industrial service. Designed for safety, the EC Chain Hoist incorporates mechanical load brake, motor brake, and overload clutch as standard.

Hoist Class = H3 | Standard Duty

Capacity (lbs/Ton)

Lift Speed (fpm)

 Frame Size* Model Number
500 lbs | 1/4 Ton 16 S EC0516
500 lbs | 1/4 Ton 32 S EC0532
500 lbs | 1/4 Ton 64 S EC0564
1000 lbs | 1/2 Ton 9 S EC1009
1000 lbs | 1/2 Ton 16 S EC1016
1000 lbs | 1/2 Ton 32 S EC1032
2000 lbs | 1 Ton 4 S EC2004
2000 lbs | 1 Ton 8 S EC2008
2000 lbs | 1 Ton 12 S EC2012
2000 lbs | 1 Ton 16 S EC2016
2000 lbs | 1 Ton 32 L EC2032
2000 lbs | 1 Ton 48 L EC2048
4000 lbs | 2 Ton 6 S EC4006
4000 lbs | 2 Ton 8 S EC4008
4000 lbs | 2 Ton 16 L EC4016
4000 lbs | 2 Ton 24 L EC4024
6000 lbs | 3 Ton 5 S EC6005
6000 lbs | 3 Ton 10 L EC6010
6000 lbs | 3 Ton 16 L EC6016
8000 lbs | 4 Ton 8 L EC8008
8000 lbs | 4 Ton 12 L EC8012
10000 lbs | 5 Ton 5 L EC10005
10000 lbs | 5 Ton 8 L EC10008

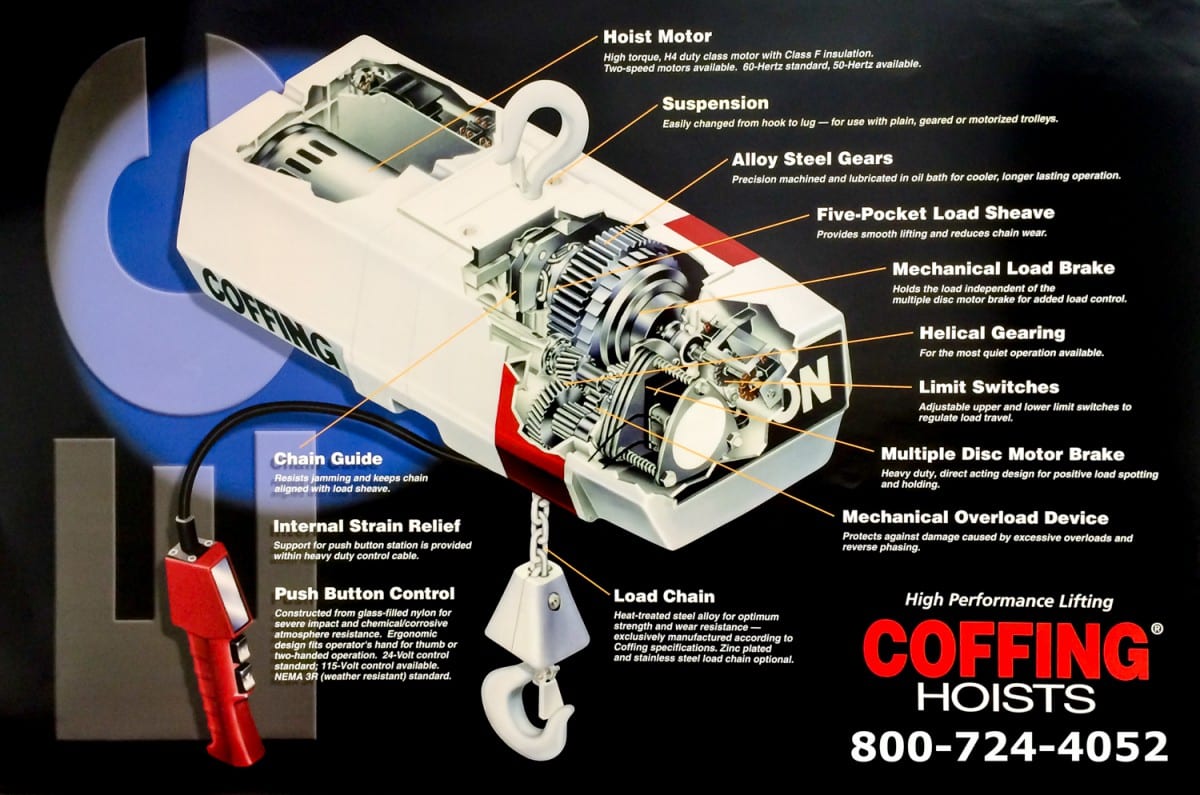

EC Hoist Overview

Coffing EC hoist specifications

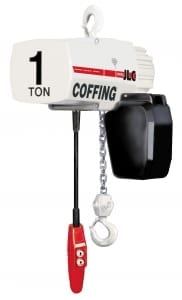

Coffing JLC Chain Hoist JLC Chain Hoists

 Designed for industrial duty performance. Compact in size, the JLC Chain Hoist features a multiple disc motor brake, overload clutch, and chain end stop for safety.

Hoist Class = H4 | Heavy Duty

Capacity (lbs/Ton) Lift Speed (fpm) Model Number
250 lbs | 1/8 Ton 32 JLC0232
500 lbs | 1/4 Ton 16 JLC0516
500 lbs | 1/4 Ton 32 JLC0532
1000 lbs | 1/2 Ton 16 JLC1016
1000 lbs | 1/2 Ton 32 JLC1032
2000 lbs | 1 Ton 16 JLC2016
4000 lbs | 2 Ton 8 JLC4008
Coffing Hoist Quote

Coffing SLC Hoist COFFING SLC Chain Hoists – Hook & Lug Suspension

Featuring rugged construction and a high H4 duty cycle, this is the perfect hoist for around the shop or garage. This compact and job-proven hoist is ideal for commercial and industrial applications. Lift up to 1,000 lbs. with 300 starts per hour. Put the Coffing SLC hoist to the test – It’s up for the task.



Hoist Class = H4 | Heavy Duty

Capacity (lbs/Ton) Lift Speed (fpm) Model Number
250 lbs | 1/8 Ton 16 SLC0216
250 lbs | 1/8 Ton 24 SLC0224
250 lbs | 1/8 Ton 40 SLC0240
300 lbs 16 SLC0316
300 lbs 24 SLC0324
300 lbs 16 SLC0340
500 lbs | 1/4 Ton 8 SLC0508
500 lbs | 1/4 Ton 12 SLC0512
500 lbs | 1/4 Ton 16 SLC0516
500 lbs | 1/4 Ton 20 SLC0520
500 lbs | 1/4 Ton 24 SLC0524
600 lbs 8 SLC0608
600 lbs 12 SLC0612
600 lbs 20 SLC0620
1000 lbs | 1/2 Ton 6 SLC1006
1000 lbs | 1/2 Ton 8 SLC1008
1000 lbs | 1/2 Ton 12 SLC1012

How much does a hoist cost?

Top of Page ^

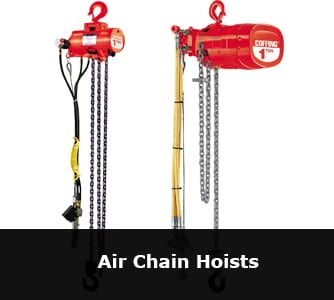

Air Chain Hoist

Coffing CAH Air HoistCoffing CAH Large Frame Air Chain Hoist



Large frame air chain hoists featuring continuous duty service for precise, infinitely variable speed and accurate load spotting.





Hoist Class = H5 | Severe Duty

Capacity (lbs/Ton)

Lift Speed (fpm)

 Lowering Speed (fpm) Model Number
2,000 lbs | 1 Ton 13 18 CAH2013
2,000 lbs | 1 Ton 30 42 CAH2030
4,000 lbs | 2 Ton 6 9 CAH4006
4,000 lbs | 2 Ton 15 21 CAH4015
6,000 lbs | 3 Ton 4 6 CAH6004
6,000 lbs | 3 Ton 10 14 CAH6010
Spark Resistant Models
1,000 lbs | 1/2 Ton 16 22 CAH0516S
2,000 lbs | 1 Ton 8 11 CAH1008S
4,000 lbs | 2 Ton 5 7 CAH2005S
Coffing CAH Air Hoist

Coffing Small Frame Air Hoist Thumb Coffing CAH Small Frame Air Hoist



 Small frame air chain hoists featuring accurate load spotting for specialized lifting applications, and continuous duty for the most severe applications.





Hoist Class = H5 | Severe Duty

Capacity (lbs/Ton) Chain Type

Lift Speed (fpm)

 Lowering Speed (fpm) Model Number (Pull Cord) Model Number (Pendant Throttle)
500 lbs Link 65 95 CAH0565LC CAH0565LP
1,000 lbs Link 45 120 CAH1045LC CAH1045LP
2,000 lbs Link 23 60 CAH2023LC CAH2023LP
500 lbs Roller 65 95 CAH0565RC CAH0565RP
1,000 lbs Roller 45 120 CAH1045RC CAH1045RP
2,000 lbs Roller 23 60 CAH2023RC CAH2023RP
Spark Resistant Models
750 lbs Link 60 100 CAH0760CS CAH0760PS
1,500 lbs Link 29 52 CAH1529CS CAH1529PS

Coffing SLA Air Hoist COFFING SLA Air Chain Hoist

Featuring rugged construction and a high H4 duty cycle, this is the perfect air hoist for around the shop or garage. This compact and job-proven hoist is ideal for commercial and industrial applications. Lift up to 1,000 lbs. with up to 300 starts per hour.

Hoist Class = H4 | Heavy Duty

Capacity (lbs) No. of Chains

Lift Speed (fpm)

 Lowering Speed (fpm) Model Number
250 lbs 1 31 83 SLA0231
300 lbs 1 31 83 SLA0331
500 lbs 1 21 83 SLA0521
500 lbs 2 16 42 SLA0516
600 lbs 2 16 42 SLA0616
1,000 lbs 2 11 42 SLA1011
Chain hoist quote pricing
Jib crane pricing
Request Pricing

Top of Page ^

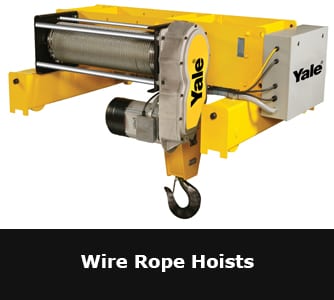

Wire Rope Hoist

Coffing Wire Rope Hoist Cutaway View

Coffing Wire Rope Hoist Coffing Wire Rope Hoist

Coffing’s wire rope hoist incorporates the high performance engineering of the Coffing brand with additional advantages of wire rope. The Coffing WR models feature a mechanical load brake, motor brake, and overload protection as standard.



Hoist Class = H3 | Standard Duty

Capacity (lbs/Ton) Frame Size Lift Speed (fpm) Model Number
1,000 lbs | 1/2 Ton S 10 WR1010
1,000 lbs | 1/2 Ton S 16 WR1016
1,000 lbs | 1/2 Ton S 21 WR1021
1,000 lbs | 1/2 Ton S 32 WR1032
2,000 lbs | 1 Ton S 10 WR2010
2,000 lbs | 1 Ton S 16 WR2016
2,000 lbs | 1 Ton L 28 WR2028
4,000 lbs | 2 Ton L 14 WR4014
4,000 lbs | 2 Ton L 21 WR4021
6,000 lbs | 3 Ton L 10 WR6010
6,000 lbs | 3 Ton L 14 WR6014
6,000 lbs | 3 Ton L 16 WR6016
6,000 lbs | 3 Ton L 26 WR6026
10,000 lbs | 5 Ton L 16 WR10016
Chain hoist quote pricing
Jib crane pricing
Request Pricing

Top of Page ^

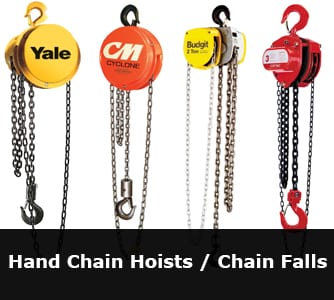

Hand Chain Hoists | Chain Falls

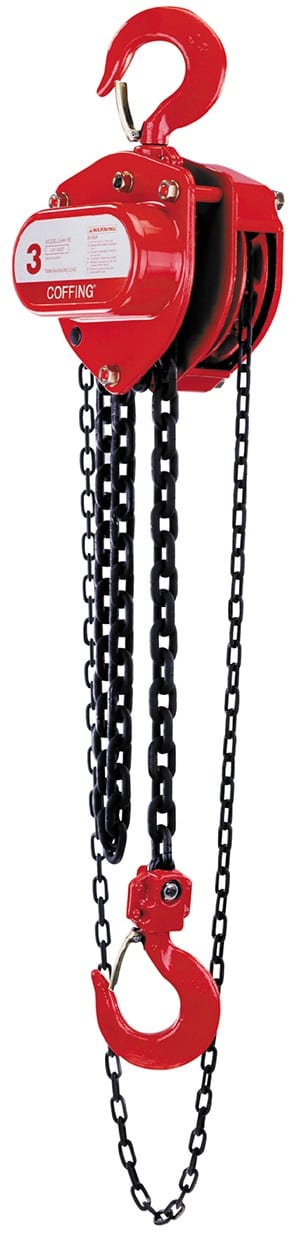

Coffing LHH Chain Hoist

Coffing LHH Hand Chain Hoists



 Stamped steel hand chain hoists are an excellent low cost option in the Coffing Hoist line. The compact, lightweight design is ideal for construction and contractor applications where portability and easy rigging are critical.

Hoist Class = H5 | Severe Duty*

Capacity (lbs/Ton) Lifts (ft.) Respective Model Numbers
1,000 lbs | 1/2 Ton 10/15/20 LHH-1/2-10 | LHH-1/2-15 | LHH-1/2-20
2,000 lbs | 1 Ton 10/15/20 LHH-1-10 | LHH-1-15 | LHH-1-20
3,000 lbs | 1.5 Ton 10/15/20 LHH-1 1/2-10 | LHH-1 1/2-15 | LHH-1 1/2-20
4,000 lbs | 2 Ton 10/15/20 LHH-2-10 | LHH-2-15 | LHH-2-20
6,000 lbs | 3 Ton 10/15/20 LHH-3-10 | LHH-3-15 | LHH-3-20
10,000 lbs | 5 Ton 10/15/20 LHH-5-10 | LHH-5-15 | LHH-5-20
16,000 lbs | 8 Ton 10/20 LHH-8-10 | LHH-8-20
20,000 lbs | 10 Ton 10/20 LHH-10-10 | LHH-10-20
24,000 lbs | 12 Ton 10/20 LHH-12-10 | LHH-12-20
30,000 lbs | 15 Ton 10/20 LHH-15-10 | LHH-15-20
40,000 lbs | 20 Ton 10/20 LHH-20-10 | LHH-20-20
50,000 lbs | 25 Ton* 10* LHH-25-10
60,000 lbs | 30 Ton* 10* LHH-30-10
80,000 lbs | 40 Ton* 10* LHH-40-10
100,000 lbs | 50 Ton* 10* LHH-50-10
Chain hoist quote pricing

Capacities & Lift

Rated loads from 1/2 to 20 Tons in stock with standard lifts of 10, 15, and 20 feet. Standard hand chain drop is 2-feet less than lift. Other lifts, hand chain drops and 25-50 Ton models available - consult Beaton Industrial - 800-724-4052

Compact and Lightweight

Designed for portability and easy installation. Compact gear housing provides low headroom.

Easy to Operate

Lubricated bearings and bushings, bearing mounted pinions, and heat-treated spur gearing ensure smooth and efficient operation with minimal effort.

Safety & Load Control

Mechanical load brake engages instantly for precise load holding and positioning. 360 degrees swivel hooks with safety latches for positive load engagement.

Durable

Through-hardened load chain provides added strength and wear resistance for greater chain lift. Stamped steel housing withstands rugged conditions.
Jib crane pricing
Request Pricing

Top of Page ^

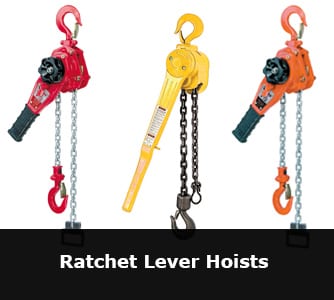

Ratchet Lever Chain Hoists

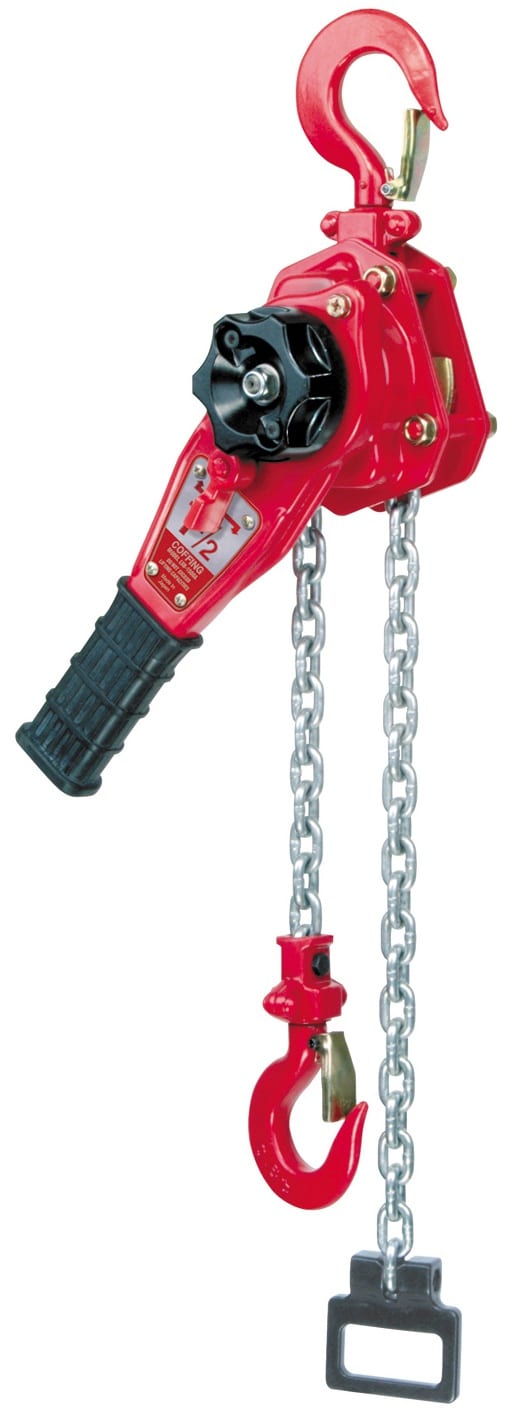

Coffing LSB Ratchet Lever Hoist

Coffing LSB Ratchet Lever Chain Hoists



 Available with optional Load Limiters. Also featuring through-hardened load chain, these stamped steel ratchet lever hoists are lightweight, durable and are ideal for construction and commercial applications. All LSB-B hoists are metric rated.

Hoist Class = H5 | Severe Duty*

Capacity (lbs/Ton) Lifts (ft.) Model Number
1,500 lbs | 3/4 Ton 5 LSB-1500B-5
1,500 lbs | 3/4 Ton 10 LSB-1500B-10
1,500 lbs | 3/4 Ton 15 LSB-1500B-15
1,500 lbs | 3/4 Ton 20 LSB-1500B-20
3,000 lbs | 1.5 Ton 5 LSB-3000B-5
3,000 lbs | 1.5 Ton 10 LSB-3000B-10
3,000 lbs | 1.5 Ton 15 LSB-3000B-15
3,000 lbs | 1.5 Ton 20 LSB-3000B-20
6,000 lbs | 3 Ton 5 LSB-6000B-5
6,000 lbs | 3 Ton 10 LSB-6000B-10
6,000 lbs | 3 Ton 15 LSB-6000B-15
6,000 lbs | 3 Ton 20 LSB-6000B-20
12,000 lbs | 6 Ton 5 LSB-12000B-5
12,000 lbs | 6 Ton 10 LSB-12000B-10
12,000 lbs | 6 Ton 15 LSB-12000B-15
12,000 lbs | 6 Ton 20 LSB-12000B-20
Chain hoist quote pricing

Capacities & Lift

Rated loads of 3/4, 1-1/2, 3 and 6 tons, with 5, 10, 15 and 20 foot standard lifts. Other lifts available - consult Beaton Industrial - 800-724-4052

Optional Load Limiter

Load limiter alerts operator of a possible overload by allowing the handle to rotate without lifting the higher-than capacity load. The load limiter can be field-installed.

Rugged and Lightweight

Impact resistant, stamped steel housing withstands rigorous use. Compact design is portable and easy to rig.

Low Handle Effort

Double reduction gearing and short, cushioned-grip handle provide easy operation with minimal handle effort.

Easy Free Chaining

State-of-the-art free wheeling mechanism allows quick and easy one-handed take-up and positioning of slack chain.
